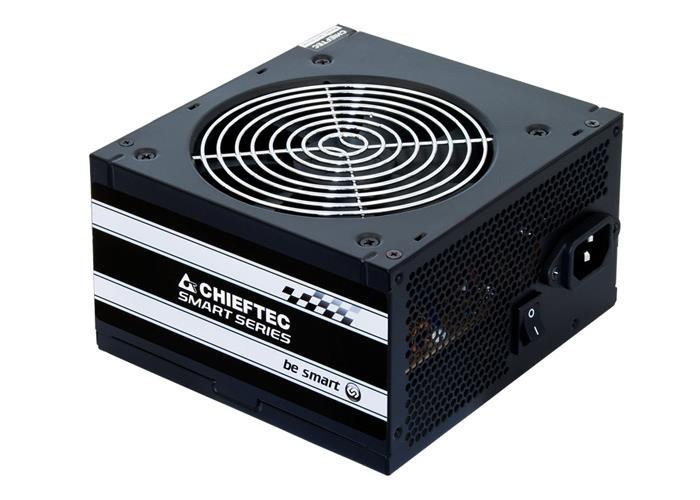

Блок живлення ATX 2.3 Chieftec Smart 500W 80 PLUS Black (GPS-500A8)
The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
| Total power | 500 W |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 47 – 63 Hz |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 24 A |
| Max output current (+12V2) | 21 A |
| Max output current (+5V) | 19 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 80 % |
| Power protection features | Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| SATA power cable length | 150/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150/500 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| Floppy drive power connector | 1 |
| Connector(s) | 20+4 PIN ATX 1 |
| Cabling type | Non-Modular |
| 80 PLUS certification | No |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Colour | Black |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Shipping Box Weight | 16.7000007629 kg |
| Unit Width | 17 cm |
| Shipping Box Height | 26 cm |
| Unit Depth | 23.5 cm |
| Shipping Box Depth | 51 cm |
| Unit Height | 9.5 cm |
| Shipping Box Width | 38.5 cm |
| Name | CASE PSU ATX 500W/GPS-500A8 CHIEFTEC |
| Garantii | 2 years |
