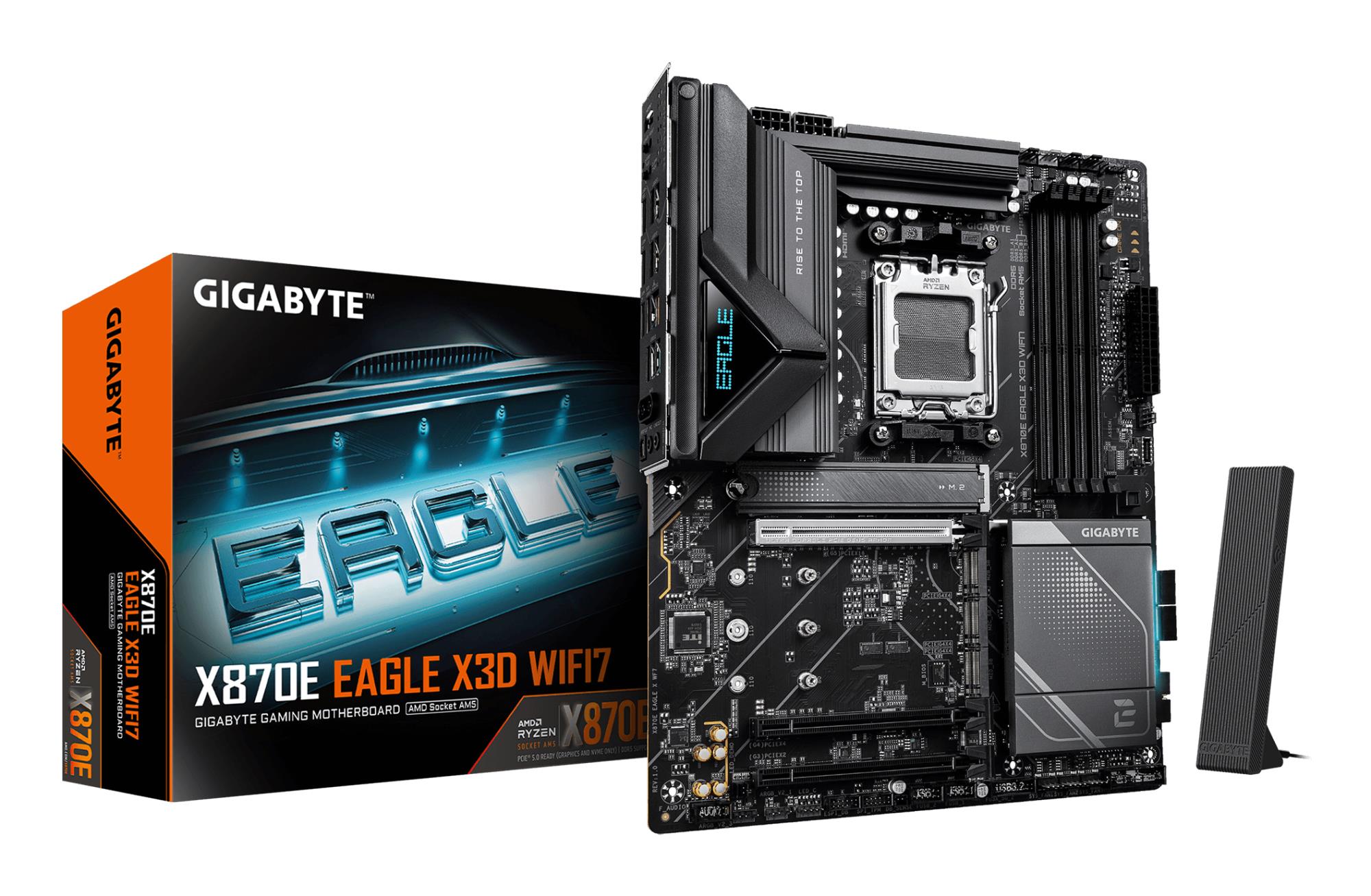

Mainboard GIGABYTE AMD X870E Socket AM5 ATX RAM DDR5-SDRAM 4xSlots Wi-Fi Yes Bluetooth Yes 4xNumber of M.2 (M) slots X870EEAGLEXWF7

Mainboard GIGABYTE AMD X870E Socket AM5 ATX RAM DDR5-SDRAM 4xSlots Wi-Fi Yes Bluetooth Yes 4xNumber of M.2 (M) slots X870EEAGLEXWF7

Hind 237,55 € KM + 57,01 € Kokku 294,56 €

Warehouse availability

  • Stock 1 9 units
Kategooria: Bränd:

Kirjeldus

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

  • X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AI
  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 14+2+2 phases VRM solution
  • Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
  • M.2 EZ-Flex: high-efficiency heat dissipation & flexible baseplate for M.2 SSD
  • EZ-Latch Design: M.2 slots and PCIe slots with Quick Release & Screwless Design
  • Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4
  • Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt

Lisainfo

Audio chip

Realtek ALC1220-VB
Audio Channels

7.1 channels
Component for

PC
Cooling type

Passive
Chipset

AMD X870E
Motherboard chipset family

AMD
Motherboard form factor

ATX
PC health monitoring

CPU/Fan/Temperature/Voltage/Water cooling
Power source type

ATX
Colour

Black
Windows operating systems supported

Windows 11 x64
Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Platform

AMD
Socket

Socket AM5
ECC сompatibility

Non-ECC
Maximum internal memory

256 GB
Maximum internal memory per slot

64 GB
Memory channels

Dual-channel
Memory slots type

DIMM
Memory Slots

4
Supported memory clock speed (max)

9000 MHz
Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8400/8600/8800/9000 MHz
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

8
RAID levels

0/1/10/5
RAID support

Yes
Supported storage drive interfaces

M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
HDCP version

2.3
Resolution

4096 x 2304 pixels
Parallel processing technology support

Not supported
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

6
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

2
Number of noise detection headers

1
Number of RGB LED pin headers

4
Number of SATA III connectors

4
Number of temperature sensor headers

2
Number of water pump connectors

3
RGB LED pin header

Yes
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
USB 3.2 Gen 2x2 connectors

1
Digital audio optical out

1
DisplayPort version

1.4
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI Version

2.1
Headphone outputs

1
Line-in

Yes
S/PDIF out port

Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1
USB4 Gen 2x2 ports quantity

2
WiFi-AP antenna jack

2
Bluetooth

5.4
Ethernet interface type

2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8126
Top Wi-Fi standard

Wi-Fi 7 (802.11be)
Wi-Fi

Yes
Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
WLAN controller model

Qualcomm QCNCM865
1st M.2 highest PCI Express generation

5.0
1st M.2 largest key size

25110
2nd M.2 highest PCI Express generation

4.0
2nd M.2 largest key size

22110
3rd M.2 highest PCI Express generation

4.0
3rd M.2 largest key size

22110
4th M.2 highest PCI Express generation

4.0
4th M.2 largest key size

22110
Number of M.2 (M) slots

4
PCI Express x16 (Gen 3.x) slots

1
PCI Express x16 (Gen 4.x) slots

1
PCI Express x16 (Gen 5.x) slots

1
ACPI version

5.0
BIOS memory size

512 Mbit
BIOS type

UEFI AMI
Clear CMOS button

Yes
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery capacity

220 mAh
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g
Country of origin

China
Lithium weight per battery

0.07 g
Number of battery cells

1
Products per shipping (inner) case

1 pc(s)
Depth

244 mm
Height

35 mm
Width

305 mm
Antenna included

Yes
Batteries included

Yes
Bundled software

Norton® Internet Security (OEM version)
Screws included

Yes
Weight

2010 g
Battery

Lithium battery
Shipping Box Depth

34 cm
Shipping Box Height

9 cm
Shipping Box Weight

2 kg
Shipping Box Width

28 cm
Garantii 3 years
