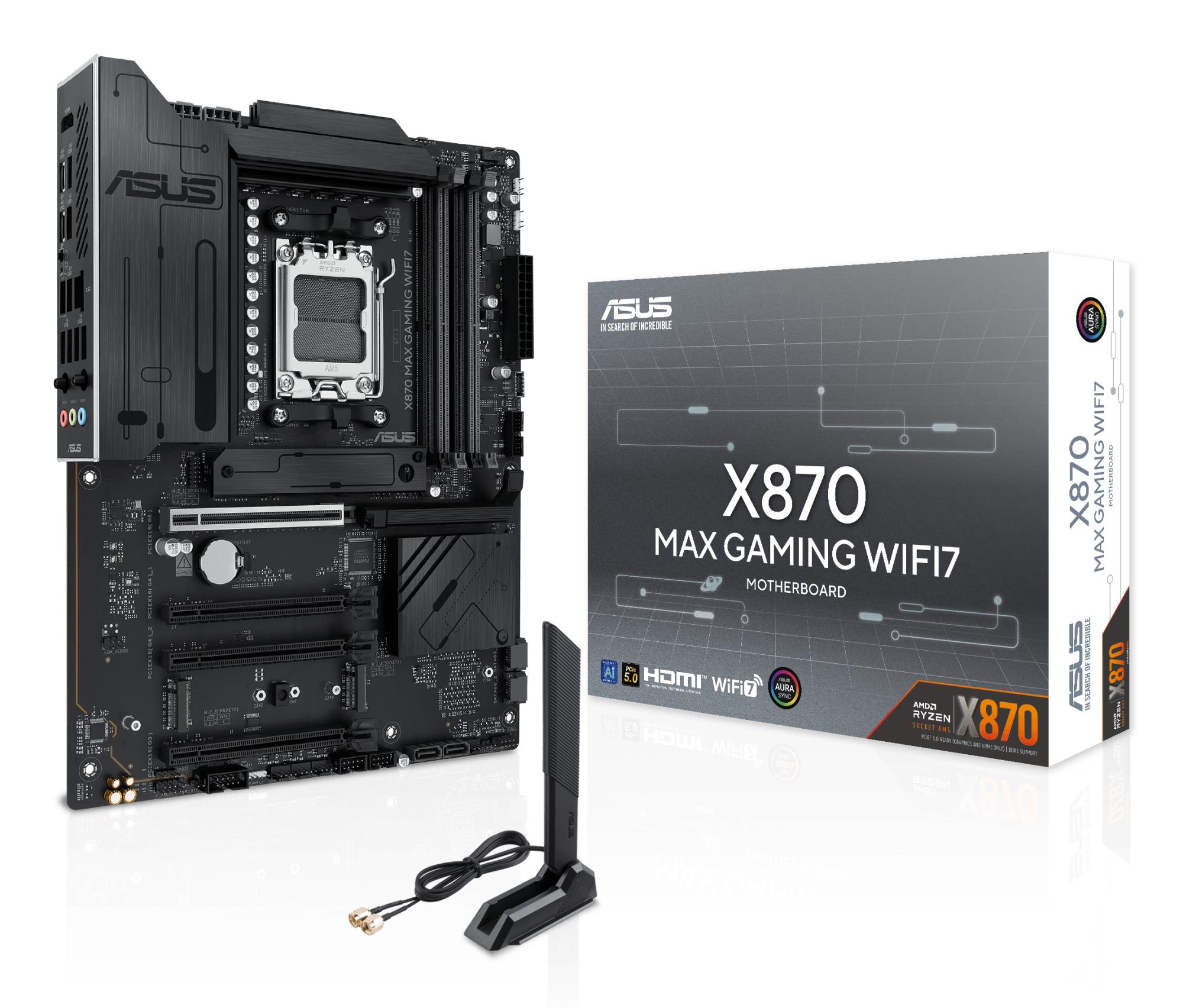

Name: Mainboard ASUS AMD X870 SAM5 ATX Memory DDR5 Memory slots 4 1xPCI-Express 3.0 16x 2xPCI-Express 4.0 16x 1xPCI-Express 5.0 16x 3xM.2 1xHDMI 4xUSB 2.0 4xUSB 3.2 2xUSB-C 1xRJ45 3xAudio port X870MAXGAMINGWIFI7 - TXGAMING
Price: 334.37 EUR
Availability: OutOfStock

Kirjeldus

X870 MAX GAMING WIFI7
ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Lisainfo

Audio Channels	7.1 channels
Component for	PC
Chipset	AMD X870
Motherboard chipset family	AMD
Motherboard form factor	ATX
Colour	Multicolour
Windows operating systems supported	Windows 11
Compatible processor series	AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Platform	AMD
Socket	Socket AM5
ECC сompatibility	ECC & Non-ECC
Maximum internal memory	256 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Memory Slots	4
Supported memory clock speed (max)	8000 MHz
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	7
RAID levels	0/1/10/5
RAID support	Yes
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Parallel processing technology support	Not supported
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Chassis intrusion connector	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Front panel audio connector	Yes
Number of chassis fan connectors	4
Number of COM connectors	1
Number of CPU fan connectors	1
Number of SATA III connectors	4
S/PDIF out connector	Yes
TPM connector	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2x2 connectors	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Line-in	Yes
Microphone in	Yes
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB connector type	USB Type-A/USB Type-C
USB4 Gen 3x2 ports quantity	2
WiFi-AP antenna jack	2
Bluetooth	Yes, 5.4
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Number of M.2 (M) slots	3
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Depth	244 mm
Height	48 mm
Width	305 mm
Antenna included	Yes
Weight	1360 g
Model	X870 MAX GAMING WIFI7
Garantii	3 years
