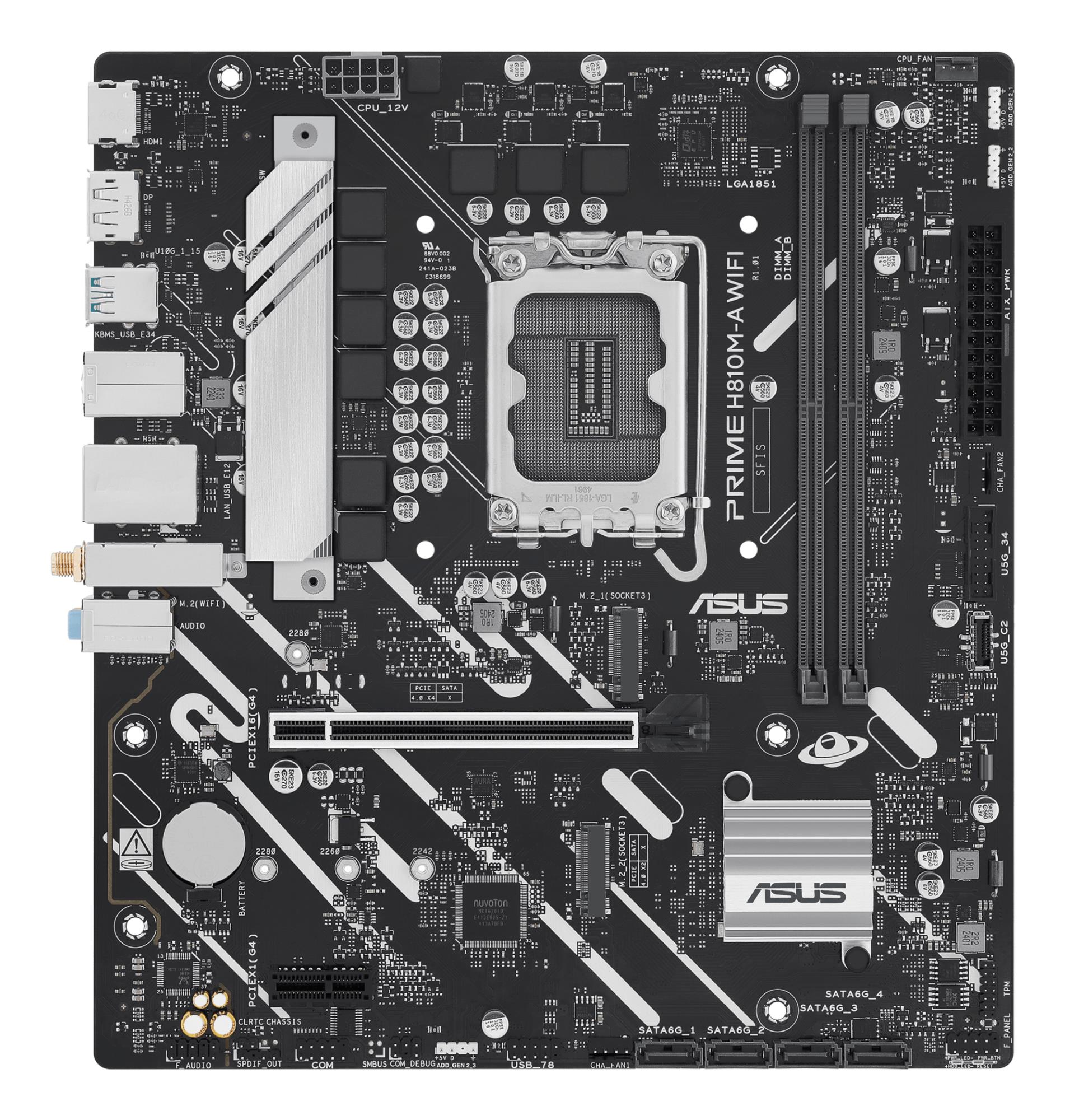

Name: Mainboard ASUS Intel H810 LGA1851 Micro-ATX Memory DDR5 Memory slots 2 PRIMEH810M-AWIFI - TXGAMING
Price: 127.09 EUR
Availability: OutOfStock

Kirjeldus

H810M-A WIFI
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Lisainfo

Audio Channels	7.1 channels
Component for	PC
Chipset	Intel H810
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64/Windows 11
Compatible processor series	Intel Core Ultra (Series 2)
Platform	Intel
Socket	LGA 1851
ECC сompatibility	Non-ECC
Maximum internal memory	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Memory Slots	2
Supported memory types	DDR5-SDRAM
Unbuffered memory	Yes
Number of HDDs supported	4
Number of storage drives supported	6
RAID levels	0/1/10/5
RAID support	Yes
Supported storage drive interfaces	M.2,SATA III
Supported storage drive types	HDD & SSD
Parallel processing technology support	Not supported
12V power connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Front panel audio connector	Yes
Number of chassis fan connectors	2
Number of COM connectors	1
Number of CPU fan connectors	1
Number of SATA III connectors	4
S/PDIF out connector	Yes
TPM connector	Yes
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
PS/2 ports quantity	1
USB 2.0 ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
WiFi-AP antenna jack	1
Bluetooth	5.3, Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
Number of M.2 (M) slots	2
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Depth	222 mm
Width	244 mm
Cables included	SATA
Screws included	Yes
Model	PRIME H810M-A WIFI
Garantii	3 years
