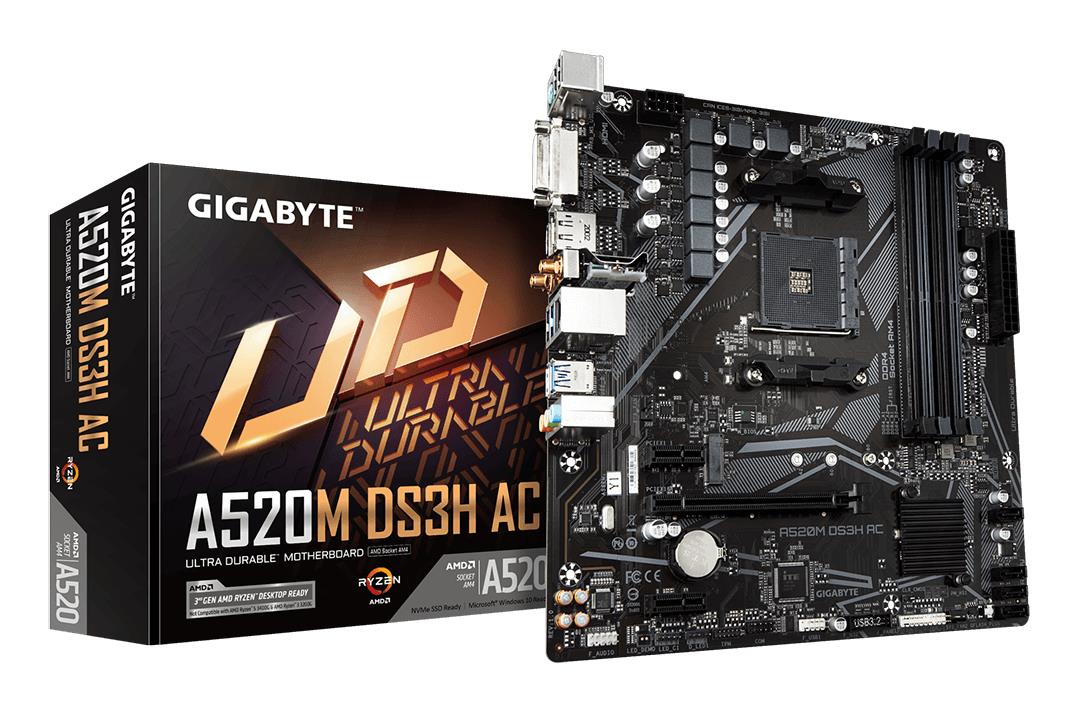

Mainboard GIGABYTE AMD A520 SAM4 Micro-ATX Memory DDR4 Memory slots 4 A520MDS3HAC1.4

Mainboard GIGABYTE AMD A520 SAM4 Micro-ATX Memory DDR4 Memory slots 4 A520MDS3HAC1.4

Hind 61,19 € KM + 14,69 € Kokku 75,88 €

Laost otsas

Warehouse availability

  • Stock 1 Out of stock
Kategooria: Bränd:

Kirjeldus

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
  • Onboard Intel Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI, DVI-D, Display Ports for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Lisainfo

Audio Channels

7.1 channels
Component for

PC
Chipset

AMD A520
Motherboard chipset family

AMD
Motherboard form factor

micro ATX
PC health monitoring

Fan/Temperature/Voltage
Power source type

ATX
Windows operating systems supported

Windows 10 x64/Windows 11
Compatible processor series

AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series
Maximum number of SMP processors

1
Platform

AMD
Socket

Socket AM4
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

128 GB
Maximum internal memory per slot

32 GB
Memory channels

Dual-channel
Memory slots type

DIMM
Memory Slots

4
Supported memory clock speed (max)

4733 MHz
Supported memory clock speeds

2133/2400/2667/2933/3200/3300/3333/3400/3466/3600/3733/3800/3866/4000/4400/4733 MHz
Supported memory types

DDR4-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

5
RAID levels

0/1/10
RAID support

Yes
Supported storage drive interfaces

M.2,SATA III
Supported storage drive types

HDD & SSD
Discrete graphics support

Yes
HDCP

Yes
Resolution

5120 x 2880 pixels
Number of displays supported

3
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

2
Number of CPU fan connectors

1
Number of EPS power connectors (8-pin)

1
Number of RGB LED pin headers

2
Number of SATA III connectors

4
RGB LED pin header

Yes
Serial port headers

1
Total number of SATA connectors

4
TPM connector

Yes
USB 2.0 connectors

1
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
DisplayPort version

1.4
DisplayPorts quantity

1
DVI-D ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI Version

2.1
Headphone outputs

1
Line-in

Yes
Microphone in

Yes
PS/2 ports quantity

1
USB 2.0 ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
WiFi-AP antenna jack

2
Bluetooth

Yes, 4.2
Ethernet interface type

Gigabit Ethernet
Ethernet LAN

Yes
Top Wi-Fi standard

Wi-Fi 5 (802.11ac)
Wi-Fi

Yes
Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
WLAN controller model

Intel Dual Band Wireless-AC 3168
1st M.2 highest PCI Express generation

3.0
1st M.2 largest key size

2280
Number of M.2 (M) slots

1
PCI Express x1 (Gen 3.x) slots

2
PCI Express x16 (Gen 3.x) slots

1
ACPI version

5.0
BIOS memory size

128 Mbit
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Products per shipping (inner) case

1 pc(s)
Depth

244 mm
Height

35 mm
Width

244 mm
Antenna included

Yes
Batteries included

Yes
Screws included

Yes
Warranty period

3 year(s)
Weight

720 g
Model

A520M DS3H AC 1.4
