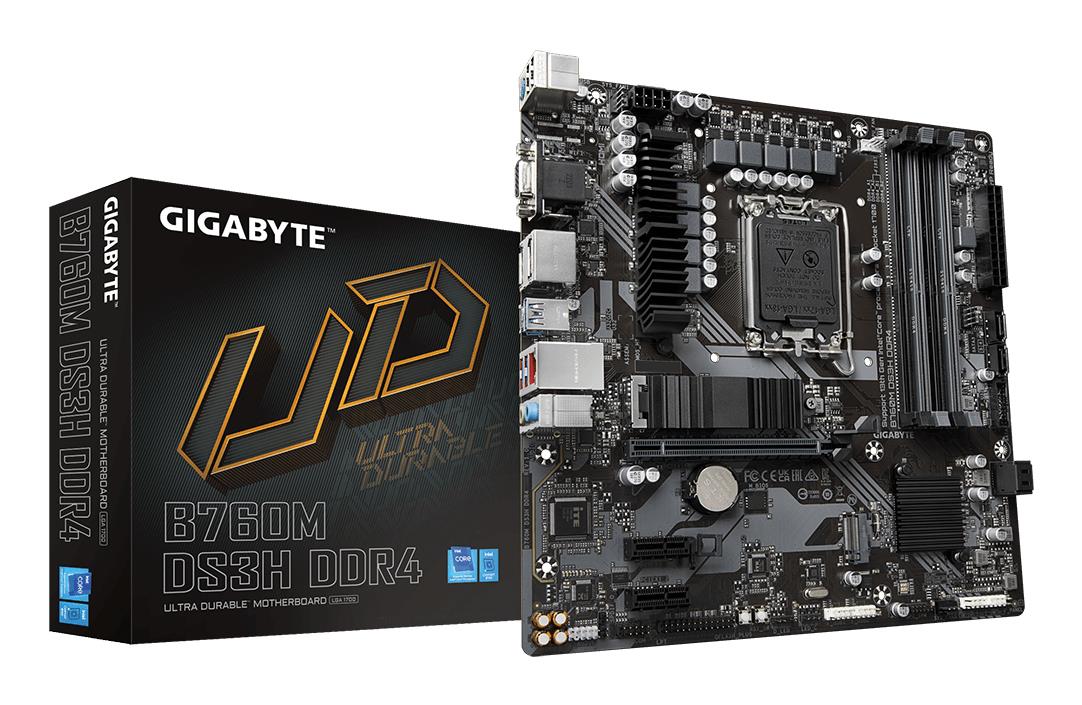

Mainboard GIGABYTE B760M DS3H DDR4 Intel B760 Express LGA 1700 micro ATX RAM DDR4-SDRAM 4xSlots 2xNumber of M.2 (M) slots B760MDS3HDDR4

Mainboard GIGABYTE B760M DS3H DDR4 Intel B760 Express LGA 1700 micro ATX RAM DDR4-SDRAM 4xSlots 2xNumber of M.2 (M) slots B760MDS3HDDR4

Hind 82,88 € KM + 19,89 € Kokku 102,77 €

Warehouse availability

  • Stock 1 20 units
Kategooria: Bränd:

Kirjeldus

GIGABYTE B760M DS3H DDR4

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4：4*DIMMs XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • M.2 Thermal Guard：To Ensure M.2 SSD Performance
  • EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：Rear USB-C 10Gb/s, DP, HDMI
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Lisainfo

Audio Channels

7.1 channels
Component for

PC
Chipset

Intel B760 Express
Motherboard chipset family

Intel
Motherboard form factor

micro ATX
PC health monitoring

Fan/Temperature/Voltage/Water cooling
Power source type

ATX
Colour

Brown
Windows operating systems supported

Windows 10/Windows 11
Compatible processor series

Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Maximum internal memory supported by processor

128 GB
Platform

Intel
Socket

LGA 1700
ECC сompatibility

Non-ECC
Maximum internal memory

128 GB
Memory channels

Dual-channel
Memory slots type

DIMM
Memory Slots

4
Supported memory clock speed (max)

5333 MHz
Supported memory clock speeds

2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz
Supported memory module capacities

12GB/16GB/1GB/2GB/32GB/4GB/8GB
Supported memory types

DDR4-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

6
RAID levels

0/1/10/5
RAID support

Yes
Supported storage drive interfaces

M.2,SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
Resolution

4096 x 2304 pixels
Number of displays supported

4
On-board graphics card

No
Parallel processing technology support

Not supported
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

3
Number of SATA III connectors

4
Parallel connector

Yes
RGB LED pin header

Yes
S/PDIF out connector

Yes
Serial port headers

1
Total number of SATA connectors

4
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
DisplayPorts quantity

2
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
Headphone outputs

1
Line-in

Yes
PS/2 ports quantity

1
USB 2.0 ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1
VGA (D-Sub) ports quantity

1
Ethernet interface type

2.5 Gigabit Ethernet
Ethernet LAN

Yes
Wi-Fi

No
Number of M.2 (M) slots

2
PCI Express x16 (Gen 3.x) slots

1
PCI Express x16 (Gen 4.x) slots

1
ACPI version

5.0
BIOS memory size

128 Mbit
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g
Country of origin

China
Lithium weight per battery

0.07 g
Number of battery cells

1
Products per shipping (inner) case

1 pc(s)
Depth

244 mm
Height

35 mm
Width

244 mm
Batteries included

Yes
Bundled software

Norton Internet Security
Model

B760M DS3H DDR4
Garantii 3 years
