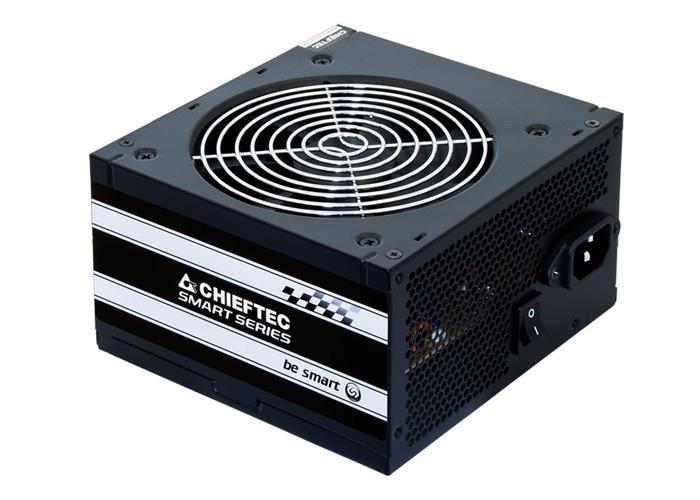

Блок живлення ATX 2.3 Chieftec Smart 700W 80 PLUS Black (GPS-700A8)
The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
| Total power | 700 W |
|---|---|
| AC input voltage | 230 V |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 54 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 80 % |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150/500 mm |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Floppy drive power connector | 1 |
| Connector(s) | 20+4 PIN ATX 1 |
| Cabling type | Non-Modular |
| 80 PLUS certification | No |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| ATX version | 2.3 |
| Colour | Black |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Weight | 1620 g |
| Shipping Box Weight | 18.2999992371 kg |
| Unit Width | 10 cm |
| Shipping Box Height | 25 cm |
| Unit Depth | 22.5 cm |
| Shipping Box Depth | 51 cm |
| Unit Height | 16.5 cm |
| Shipping Box Width | 38 cm |
| Name | CASE PSU ATX 700W/GPS-700A8 CHIEFTEC |
| Model name | GPS-700A8 |
| Garantii | 2 years |
