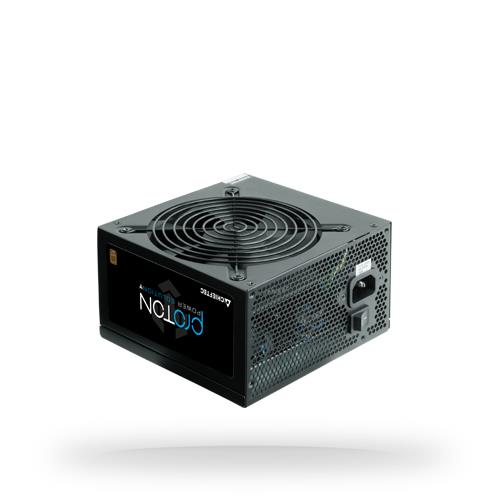

Блок живлення ATX 2.3 Chieftec PROTON 500W 80 PLUS Bronze Black (BDF-500S)
With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
| Total power | 500 W |
|---|---|
| AC input voltage | 115 — 230 V |
| AC input frequency | 50 — 60 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 90 W |
| Combined power (+5V) | 90 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85 % |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150/400 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150/400 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Connector(s) | 20+4 PIN ATX 1 |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| ATX version | 2.3 |
| Colour | Black |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Manual | Yes |
| Warranty card | Yes |
| Shipping Box Weight | 22 kg |
| Unit Width | 10 cm |
| Shipping Box Height | 25 cm |
| Unit Depth | 25 cm |
| Shipping Box Depth | 54 cm |
| Unit Height | 18 cm |
| Shipping Box Width | 51 cm |
| Name | CASE PSU ATX 500W/BDF-500S CHIEFTEC |
| Model name | BDF-500S |
| Гарантия | 2 years |
