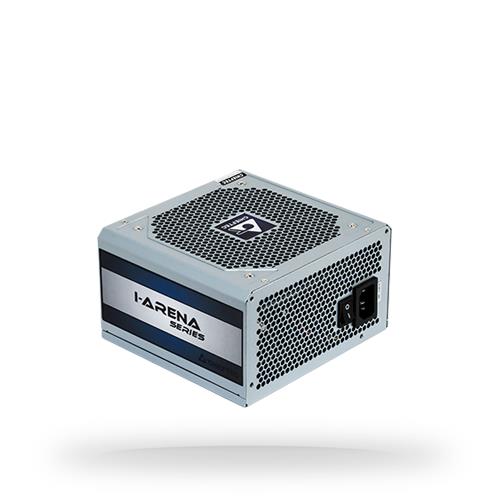

Блок живлення ATX 2.3 Chieftec IARENA 700W 80 PLUS Silver (GPC-700S)
In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.
| Total power | 700 W |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 6.3 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 52.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Connector(s) | 20+4 PIN ATX 1 |
| Cabling type | Non-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| ATX version | 2.3 |
| Colour | Silver |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 87 mm |
| Shipping Box Weight | 16.5 kg |
| Unit Width | 9 cm |
| Shipping Box Height | 25 cm |
| Unit Depth | 14.5 cm |
| Shipping Box Depth | 50.5 cm |
| Unit Height | 21 cm |
| Shipping Box Width | 37 cm |
| Name | CASE PSU ATX 700W/GPC-700S CHIEFTEC |
| Warranty | 2 years |
