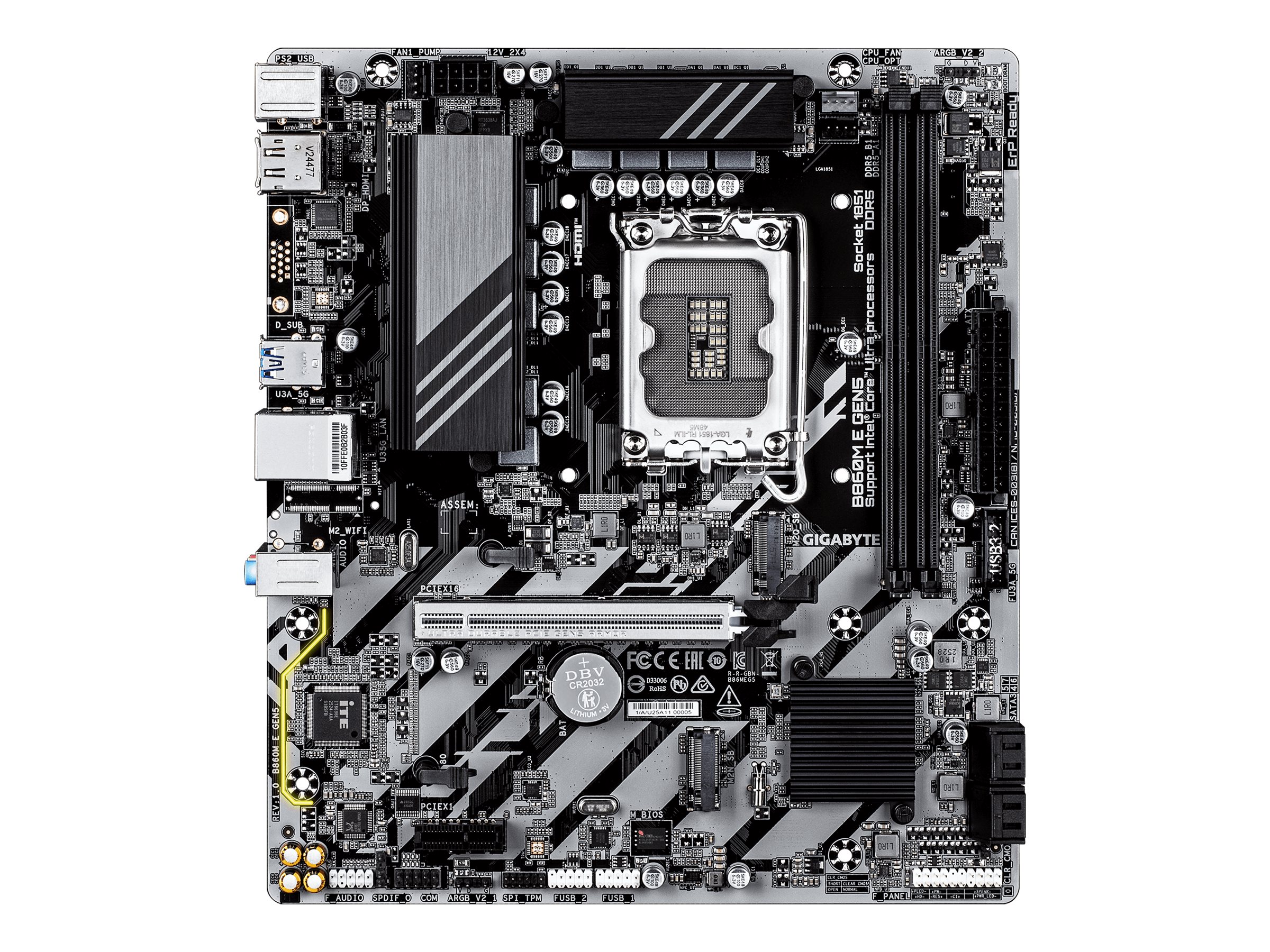

Mainboard GIGABYTE Intel B860 LGA 1851 (Socket V1) micro ATX RAM DDR5-SDRAM 2xSlots 2xNumber of M.2 (M) slots B860MEGEN5

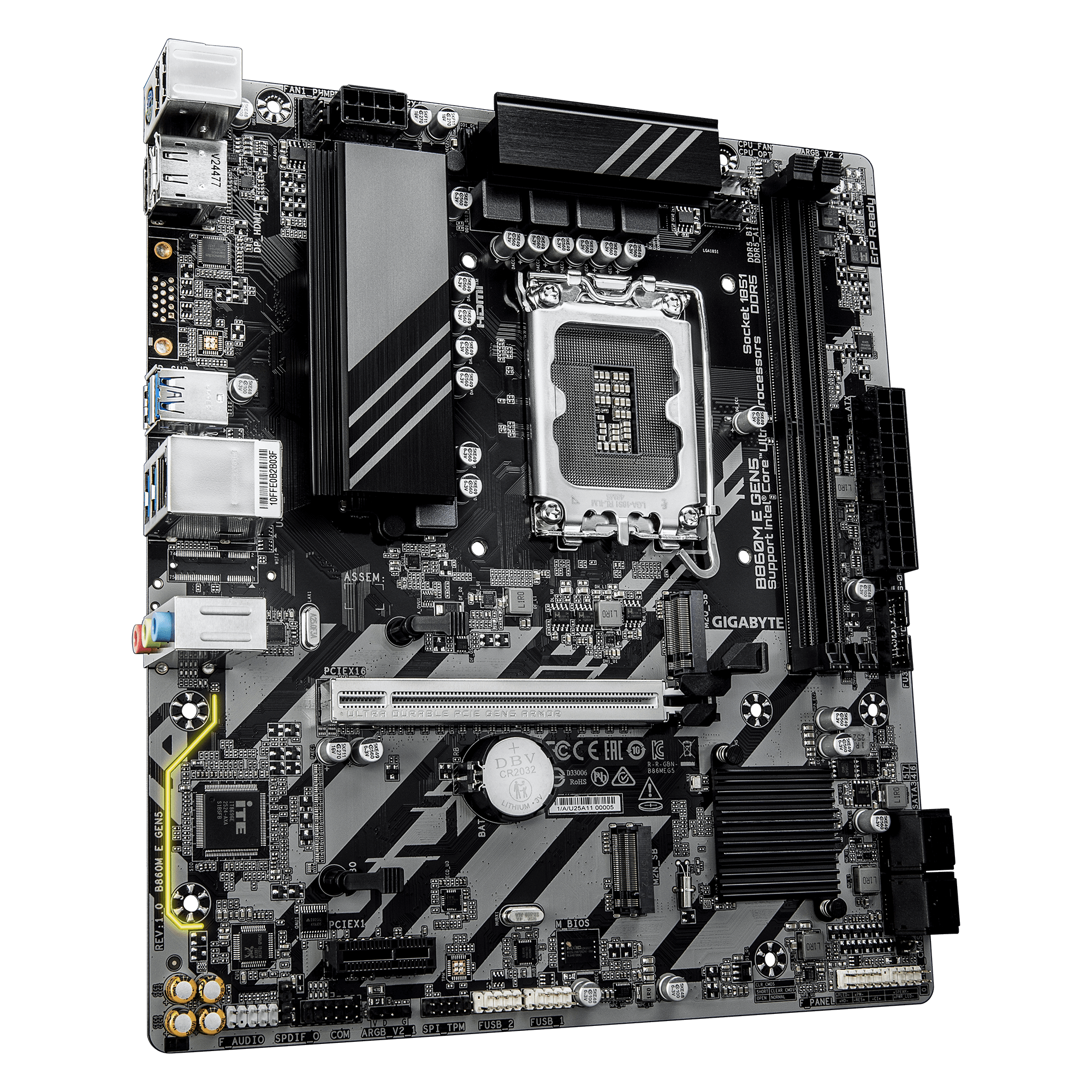

Mainboard GIGABYTE Intel B860 LGA 1851 (Socket V1) micro ATX RAM DDR5-SDRAM 2xSlots 2xNumber of M.2 (M) slots B860MEGEN5 - Image 2

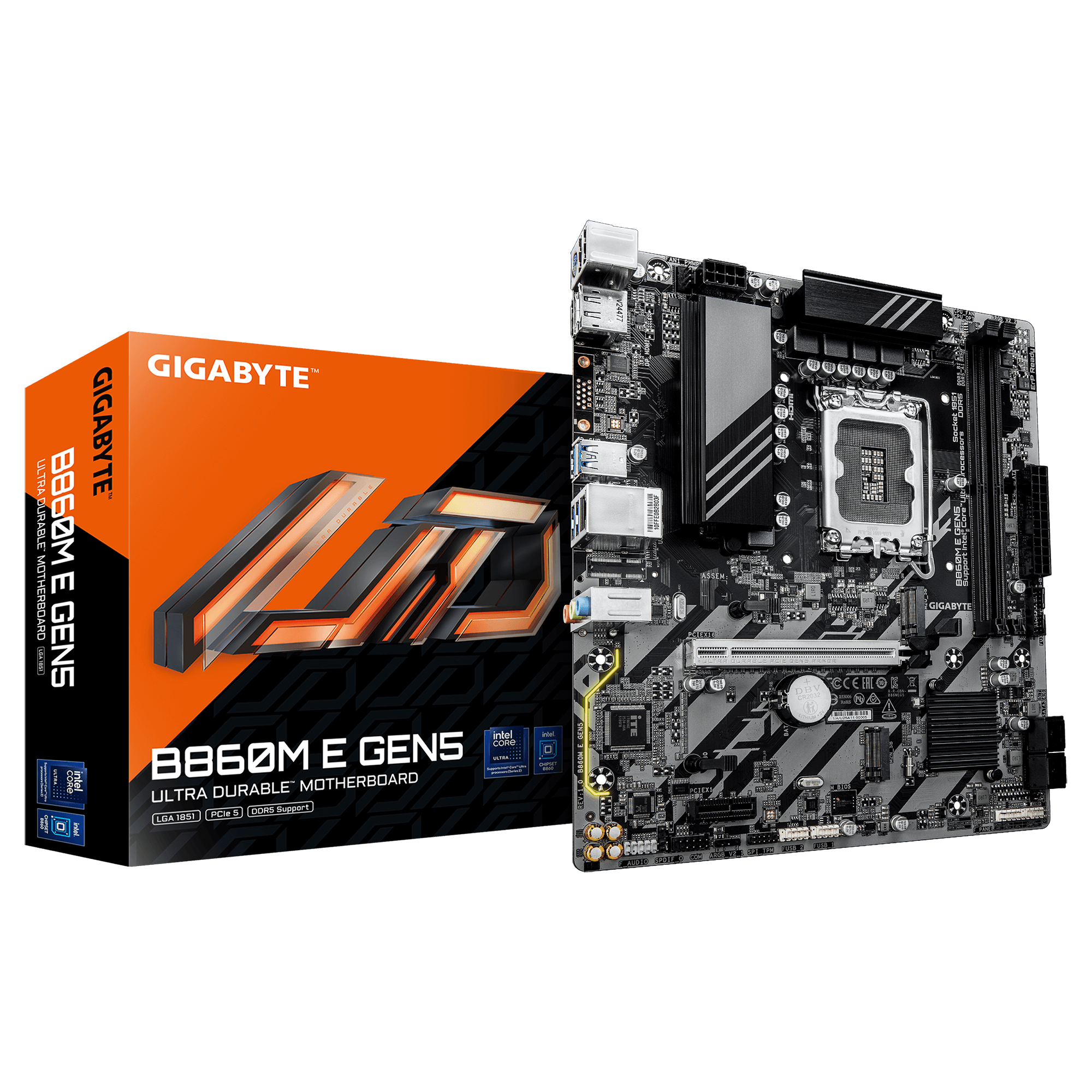

Mainboard GIGABYTE Intel B860 LGA 1851 (Socket V1) micro ATX RAM DDR5-SDRAM 2xSlots 2xNumber of M.2 (M) slots B860MEGEN5 - Image 3

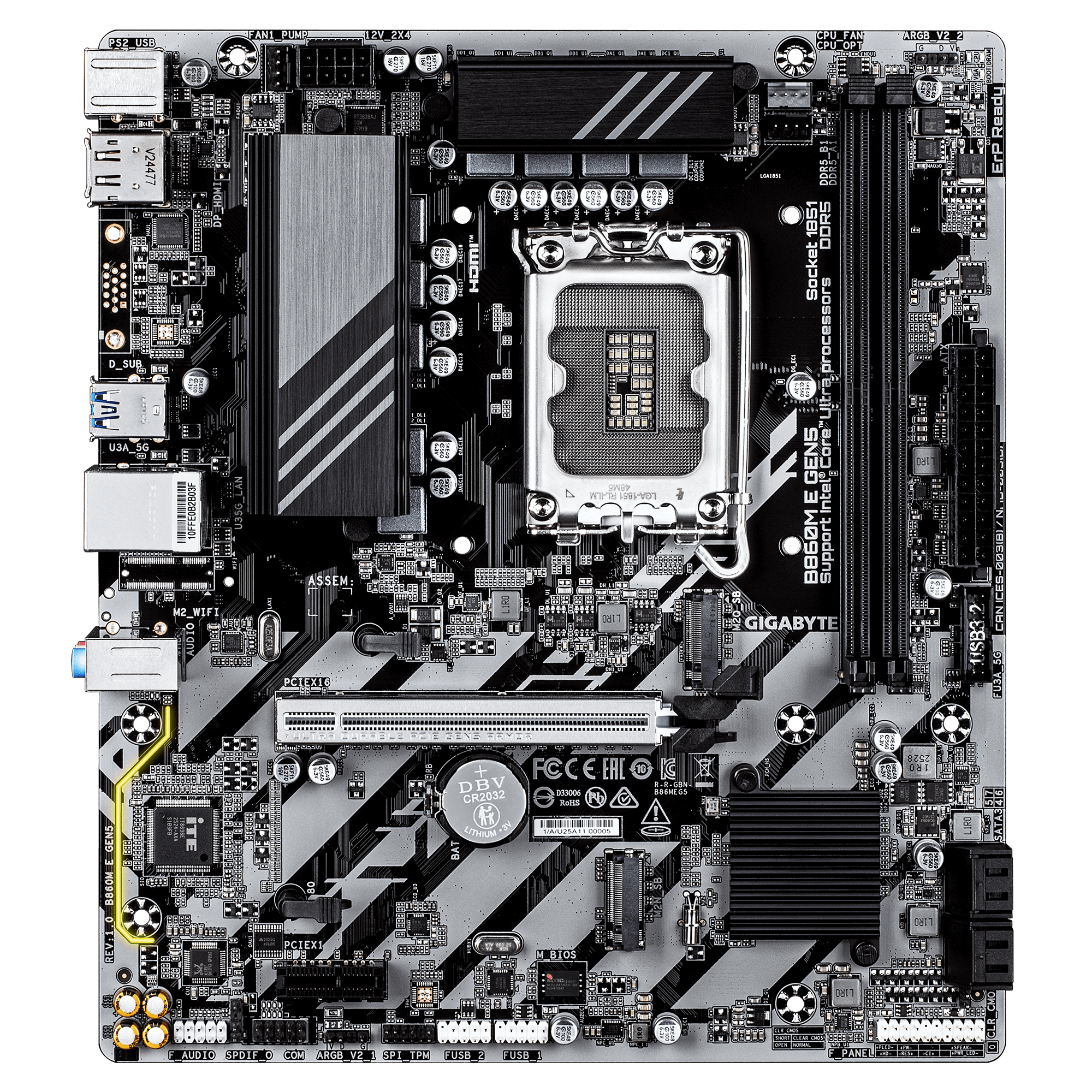

Mainboard GIGABYTE Intel B860 LGA 1851 (Socket V1) micro ATX RAM DDR5-SDRAM 2xSlots 2xNumber of M.2 (M) slots B860MEGEN5 - Image 4

Mainboard GIGABYTE Intel B860 LGA 1851 (Socket V1) micro ATX RAM DDR5-SDRAM 2xSlots 2xNumber of M.2 (M) slots B860MEGEN5

Price 110,15 € VAT + 26,44 € Total 136,59 €

Warehouse availability

  • Stock 1 6 units
  • Stock 2 5 units
Category: Brand:

Description

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology./

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

  • PCIe Gen5 Performance
  • Supports Intel Core Ultra processors (Series 2)
  • Hybrid 4+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive: Provides optimal and customized BIOS preset profile for users
  • EZ-Latch: PCIe5.0 x16 Slot with Quick Release Design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
  • Fast Networking: GbE LAN
  • Extended Connectivity: HDMI, DisplayPort

Additional information

Long Description

GIGABYTE B860M E GEN5 Motherboard – Intel Core Ultra Series CPUs, 4+1+2 Phases VRM, up to 8800MHz DDR5 (O.C.), 2xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Chipset

Intel B860
Audio chip

Realtek ALC897
Colour

Dark brown
PC health monitoring

Fan/Temperature/Voltage/Water cooling
Component for

PC
Motherboard form factor

micro ATX
Audio Channels

7.1 channels
Cooling type

Passive
Motherboard chipset family

Intel
Power source type

ATX
Windows operating systems supported

Windows 10 x64/Windows 11 x64
Platform

Intel
Compatible processor series

Intel Core Ultra (Series 2)
Socket

LGA 1851
Supported memory types

DDR5-SDRAM
Memory Slots

2
Memory slots type

DIMM
Memory channels

Dual-channel
ECC сompatibility

ECC & Non-ECC
Supported memory clock speeds

5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800 MHz
Supported memory clock speed (max)

8800 MHz
Maximum internal memory

128 GB
Unbuffered memory

Yes
Maximum internal memory per slot

64 GB
Supported storage drive types

HDD & SSD
Supported storage drive interfaces

M.2,PCI Express 4.0,SATA III
Number of HDDs supported

4
Number of storage drives supported

6
RAID support

Yes
RAID levels

0/1/10/5
Parallel processing technology support

Not supported
Resolution

4096 x 2160 pixels
HDCP

Yes
HDCP version

2.3
DirectX version

12.0
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
Number of SATA III connectors

4
S/PDIF out connector

Yes
Front panel audio connector

Yes
Front panel connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Number of CPU fan connectors

2
Number of chassis fan connectors

1
EPS power connector (8-pin)

Yes
Number of EPS power connectors (8-pin)

1
Number of water pump connectors

2
Serial port headers

1
TPM connector

Yes
RGB LED pin header

Yes
Number of RGB LED pin headers

2
USB 2.0 ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
Ethernet LAN (RJ-45) ports

1
PS/2 ports quantity

1
HDMI ports quantity

1
HDMI Version

2.1
DisplayPorts quantity

1
DisplayPort version

2.1
Headphone outputs

1
Line-in

Yes
Microphone in

Yes
Ethernet LAN

Yes
Ethernet interface type

Gigabit Ethernet
LAN controller

Realtek RTL8111H
Wi-Fi

No
PCI Express x1 (Gen 3.x) slots

1
PCI Express x16 (Gen 5.x) slots

1
Number of M.2 (M) slots

2
1st M.2 largest key size

2280
1st M.2 highest PCI Express generation

4.0
2nd M.2 largest key size

2280
2nd M.2 highest PCI Express generation

4.0
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
ACPI version

5.0
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Country of origin

China
Products per shipping (inner) case

1 pc(s)
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery capacity

220 mAh
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Width

244 mm
Depth

215 mm
Height

35 mm
Batteries included

Yes
Screws included

Yes
Bundled software

Norton®Internet Security (OEM version)
Weight

910 g
Shipping Box Weight

10 kg
Unit Width

27 cm
Shipping Box Height

28.5 cm
Unit Depth

26.5 cm
Shipping Box Depth

58 cm
Unit Height

5.5 cm
Shipping Box Width

29 cm
Bullet Points

<ul><li>PCIe Gen5 Performance</li><li>Supports Intel Core Ultra processors (Series 2)</li><li>Hybrid 4+1+2 phases VRM solution</li><li>D5 Bionic Corsa for Infinite Memory Performance</li><li>AI Perfdrive: Provides optimal and customized BIOS preset profile for users</li><li>EZ-Latch: PCIe5.0 x16 Slot with Quick Release Design</li><li>Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW</li><li>Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors</li><li>Fast Networking: GbE LAN</li><li>Extended Connectivity: HDMI, DisplayPort</li></ul>
Name

MB B860 S1851 MATX/B860M E GEN5 GIGABYTE
Warranty 3 years
