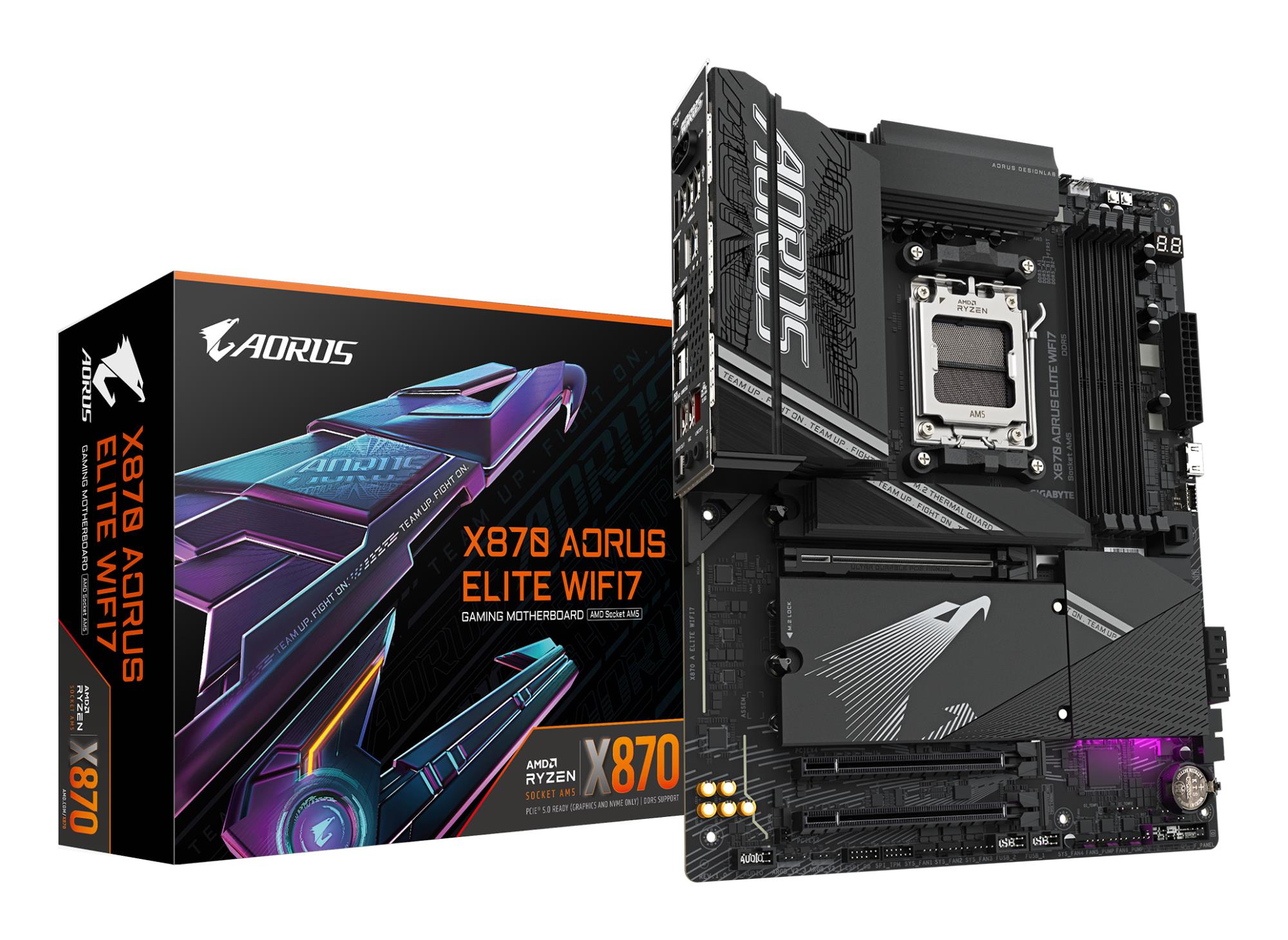

Mainboard GIGABYTE AMD X870 SAM5 ATX Memory DDR5 Memory slots 4 X870AELITEWIFI71.1

Mainboard GIGABYTE AMD X870 SAM5 ATX Memory DDR5 Memory slots 4 X870AELITEWIFI71.1

Price 243,33 € VAT + 58,40 € Total 301,73 €

Warehouse availability

  • Stock 1 4 units
Category: Brand:

Description

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
  • Twin 16+2+2 Phases Digital VRM with DrMOS
  • Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
  • PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
  • Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
  • Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

Additional information

Audio chip

Realtek ALC1220
Audio Channels

7.1 channels
Component for

PC
Chipset

AMD X870
Motherboard chipset family

AMD
Motherboard form factor

ATX
PC health monitoring

Fan/Temperature/Voltage
Colour

Black
Windows operating systems supported

Windows 11 x64
Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Maximum internal memory supported by processor

256 GB
Platform

AMD
Socket

Socket AM5
ECC сompatibility

Non-ECC
Maximum internal memory

256 GB
Maximum internal memory per slot

64 GB
Memory channels

Dual-channel
Memory slots type

DIMM
Memory Slots

4
Supported memory clock speed (max)

8200 MHz
Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz
Supported memory module capacities

16GB/1GB/24GB/2GB/32GB/4GB/8GB
Supported memory types

DDR5-SDRAM
Number of HDDs supported

4
Number of storage drives supported

8
RAID levels

0/1/10
RAID support

Yes
Supported storage drive interfaces

M.2,SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
On-board graphics card

No
Parallel processing technology support

Not supported
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

6
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

2
Number of RGB LED pin headers

4
Number of SATA III connectors

4
Number of water pump connectors

3
RGB LED pin header

Yes
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2x2 connectors

1
DisplayPort version

1.4
DisplayPorts quantity

2
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI Version

2.1
Headphone outputs

1
Microphone in

Yes
S/PDIF out port

Yes
USB 2.0 ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3
USB4 Gen 2x2 ports quantity

2
WiFi-AP antenna jack

2
Bluetooth

5.4
Ethernet interface type

2.5 Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8125
Top Wi-Fi standard

Wi-Fi 7 (802.11be)
Wi-Fi

Yes
Wi-Fi standards

Wi-Fi 7 (802.11be)
WLAN controller model

MediaTek MT7925
1st M.2 highest PCI Express generation

5.0
1st M.2 largest key size

25110
2nd M.2 highest PCI Express generation

5.0
2nd M.2 largest key size

22110
3rd M.2 highest PCI Express generation

5.0
3rd M.2 largest key size

22110
4th M.2 highest PCI Express generation

4.0
4th M.2 largest key size

22110
Number of M.2 (M) slots

4
PCI Express x16 (Gen 3.x) slots

1
PCI Express x16 (Gen 4.x) slots

1
PCI Express x16 (Gen 5.x) slots

1
PCI Express x4 slots

2
ACPI version

5.0
BIOS memory size

256 Mbit
BIOS type

UEFI AMI
Clear CMOS button

Yes
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g
Country of origin

China
Lithium weight per battery

0.07 g
Number of battery cells

1
Products per shipping (inner) case

1 pc(s)
Depth

244 mm
Height

35 mm
Width

305 mm
Antenna included

Yes
Batteries included

Yes
Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included

Yes
Weight

2400 g
Model

X870 AORUS ELITE WIFI7
Warranty 3 years
