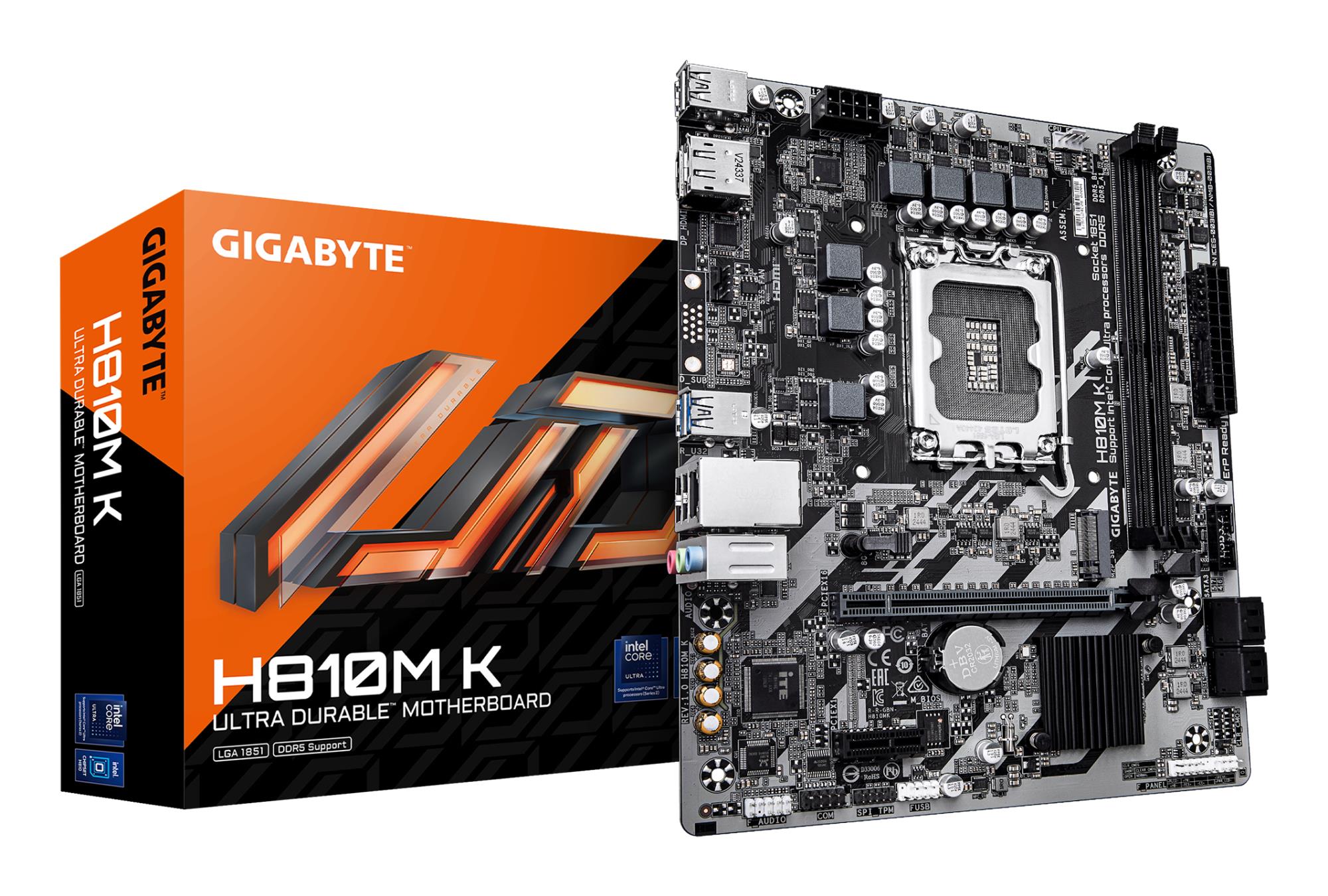

Mainboard GIGABYTE Intel H810 LGA1851 Micro-ATX Memory DDR5 Memory slots 2 H810MK1.0

Mainboard GIGABYTE Intel H810 LGA1851 Micro-ATX Memory DDR5 Memory slots 2 H810MK1.0

Price 77,09 € VAT + 18,50 € Total 95,59 €

Warehouse availability

  • Stock 1 10 units
Category: Brand:

Description

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

  • Supports Intel Core Ultra processors (Series 2)
  • Hybrid 3+1+2 phases VRM solution
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
  • Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
  • Fast Networking: GbE LAN
  • Extended Connectivity: HDMI, DisplayPort

Additional information

Chipset

Intel H810
Audio chip

Realtek ALC897
Colour

Dark brown
PC health monitoring

Fan/Temperature/Voltage/Water cooling
Component for

PC
Motherboard form factor

micro ATX
Audio Channels

7.1 channels
Cooling type

Passive
Motherboard chipset family

Intel
Power source type

ATX
Windows operating systems supported

Windows 10 x64/Windows 11 x64
Platform

Intel
Compatible processor series

Intel Core Ultra (Series 2)
Socket

LGA 1851
Supported memory types

DDR5-SDRAM
Memory Slots

2
Memory slots type

DIMM
Memory channels

Dual-channel
ECC сompatibility

ECC & Non-ECC
Supported memory clock speeds

5600/6400 MHz
Supported memory clock speed (max)

6400 MHz
Maximum internal memory

128 GB
Unbuffered memory

Yes
Maximum internal memory per slot

64 GB
Supported storage drive types

HDD & SSD
Supported storage drive interfaces

M.2,PCI Express 4.0,SATA III
Number of HDDs supported

4
Number of storage drives supported

5
RAID support

Yes
RAID levels

0/1/10/5
Parallel processing technology support

Not supported
Resolution

4096 x 2160 pixels
HDCP

Yes
DirectX version

12.0
USB 2.0 connectors

1
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
Number of SATA III connectors

4
Front panel audio connector

Yes
Front panel connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Number of CPU fan connectors

1
Number of chassis fan connectors

1
EPS power connector (8-pin)

Yes
Number of EPS power connectors (8-pin)

1
Serial port headers

1
TPM connector

Yes
USB 2.0 ports quantity

4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI Version

2.1
DisplayPorts quantity

1
DisplayPort version

2.1
Headphone outputs

1
Line-in

Yes
Microphone in

Yes
Ethernet LAN

Yes
Ethernet interface type

Gigabit Ethernet
LAN controller

Realtek RTL8111H
Wi-Fi

No
PCI Express x1 (Gen 3.x) slots

1
PCI Express x16 (Gen 4.x) slots

1
Number of M.2 (M) slots

1
1st M.2 largest key size

2280
1st M.2 highest PCI Express generation

4.0
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
ACPI version

5.0
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Country of origin

China
Products per shipping (inner) case

1 pc(s)
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Width

226 mm
Depth

185 mm
Height

35 mm
Batteries included

Yes
Screws included

Yes
Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Weight

688 g
Shipping Box Weight

0.6869999766 kg
Shipping Box Height

5.5 cm
Shipping Box Depth

26.5 cm
Shipping Box Width

23.5 cm
Name

MB H810 S1851 MATX/H810M K 1.0 GIGABYTE
Model

H810M K
Warranty 3 years
