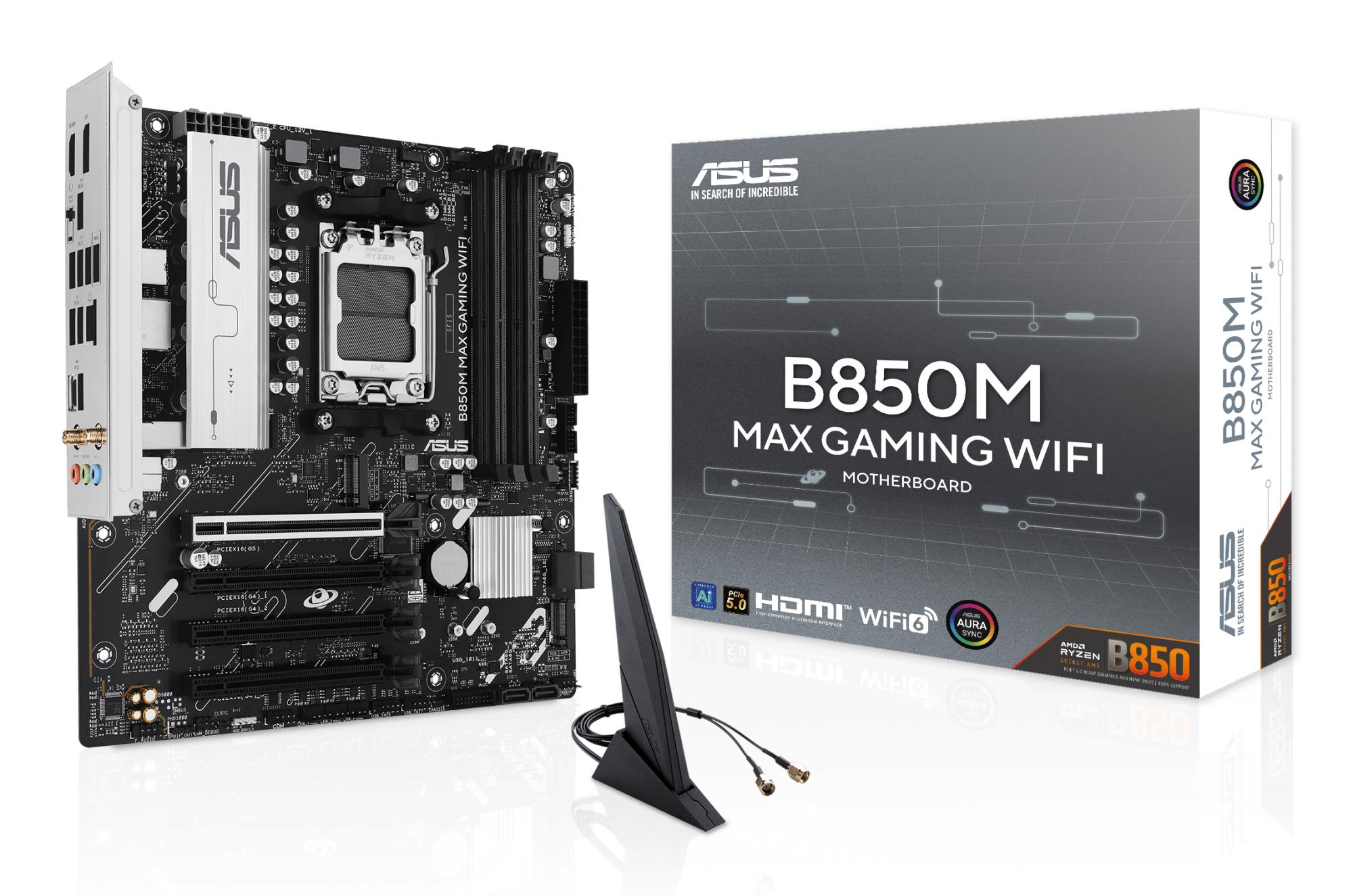

B850M MAX GAMING WIFI
B850M MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850M MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| Audio Channels | 7.1 channels |
|---|---|
| Component for | PC |
| Cooling type | Passive |
| Chipset | AMD B850 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Colour | Black |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| Socket | Socket AM5 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Number of RGB LED pin headers | 3 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| WiFi-AP antenna jack | 1 |
| Bluetooth | Yes |
| Bluetooth | 5.4 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| 3rd M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Depth | 244 mm |
| Width | 244 mm |
| Antenna included | Yes |
| Cables included | SATA |
| Screws included | Yes |
| Weight | 859 g |
| Model | B850M MAX GAMING WIFI |
