Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|6xUSB 3.2|2xUSB-C|2xUSB4|1xOptical S/PDIF|1xRJ45|ROGCROSSHAIRX870EHERO

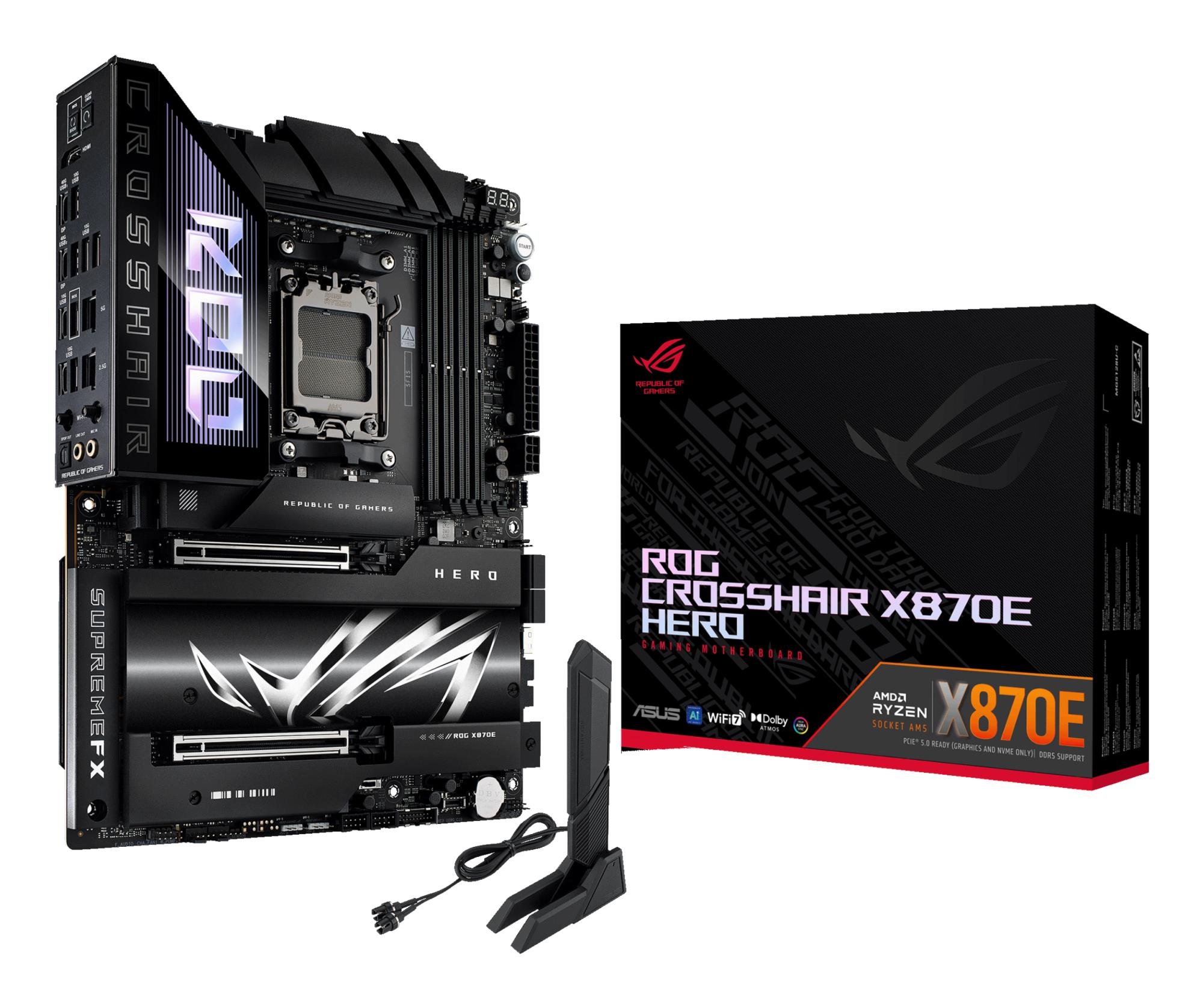

Mainboard ASUS AMD X870E SAM5

Price 662,03 € VAT + 158,89 € Total 820,92 €

Specifications

  • ATX
  • Memory DDR5
  • Memory slots 4
  • 2xPCI-Express 4.0 16x
  • 2xPCI-Express 5.0 16x
  • 4xM.2
  • 1xHDMI
  • 1xAudio-In
  • 1xAudio-Out
  • 6xUSB 3.2
  • 2xUSB-C
  • 2xUSB4
  • 1xOptical S/PDIF
  • 1xRJ45
  • ROGCROSSHAIRX870EHERO

Warehouse availability

  • Stock 1 3 units
Category: Brand:

Description

ASUS AI INTELLIGENCE
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

ai OVERCLOCKING
Tuning is now faster and smarter than ever before.

AI COOLING II
Balance the thermals and acoustics of any build with a single click.

Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Additional information

Audio chip

Realtek ALC4082
Audio Channels

7.1 channels
Component for

PC
Chipset

AMD X870E
Motherboard chipset family

AMD
Motherboard form factor

ATX
Windows operating systems supported

Windows 11
Processor manufacturer

AMD
Socket

Socket AM5
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

192 GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

5
Number of storage drives supported

10
RAID levels

0/1/10/5
RAID support

Yes
Supported storage drive interfaces

M.2,SATA III,SlimSAS
Supported storage drive types

HDD & SSD
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Number of chassis fan connectors

4
Number of SATA III connectors

4
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
USB 3.2 Gen 2x2 connectors

2
Ethernet LAN (RJ-45) ports

2
HDMI ports quantity

1
Headphone outputs

1
Microphone in

Yes
S/PDIF out port

Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2
USB4 Gen 2x2 ports quantity

2
WiFi-AP antenna jack

1
Bluetooth

Yes
Bluetooth

5.4
Ethernet interface type

2.5 Gigabit Ethernet/5 Gigabit Ethernet
Ethernet LAN

Yes
Top Wi-Fi standard

Wi-Fi 7 (802.11be)
Wi-Fi

Yes
Wi-Fi standards

Wi-Fi 7 (802.11be)
Number of M.2 (M) slots

5
PCI Express x16 (Gen 4.x) slots

4
PCI Express x16 (Gen 5.x) slots

2
BIOS memory size

256 Mbit
BIOS type

UEFI AMI
Clear CMOS button

Yes
Depth

244 mm
Height

50 mm
Width

305 mm
Cables included

SATA
Drivers included

Yes
Weight

2546 g
Model

ROG CROSSHAIR X870E HERO
