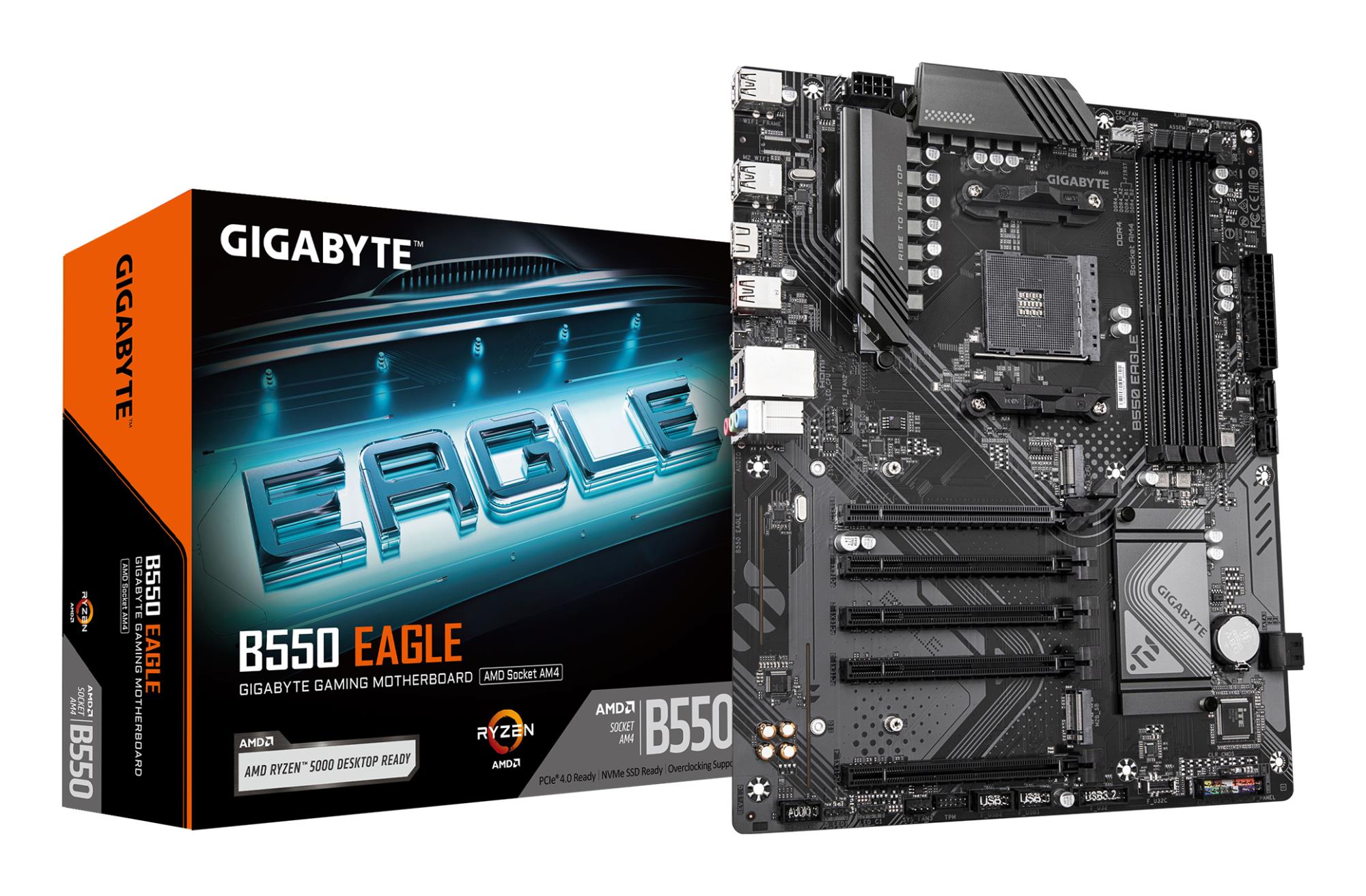

Mainboard GIGABYTE AMD B550 Socket AM4 ATX RAM DDR4-SDRAM 4xSlots 2xNumber of M.2 (M) slots B550 EAGLE B550EAGLE1.0

Mainboard GIGABYTE AMD B550 Socket AM4 ATX RAM DDR4-SDRAM 4xSlots 2xNumber of M.2 (M) slots B550 EAGLE B550EAGLE1.0

Price 81,93 € VAT + 19,66 € Total 101,59 €

Warehouse availability

  • Stock 1 10 units
Category: Brand:

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
  • Digital twin 10+3+1 phases VRM solution
  • Dual Channel DDR44*DIMMs with AMD EXPO Memory Module Support
  • EZ-Latch: PCIe slots with Quick Release Design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
  • Efficient Thermal: VRM Thermal Armor Advanced
  • Fast Networking: GbE LAN
  • Extended Connectivity: HDMI, Displayport
  • PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Additional information

Audio chip

Realtek ALC897
Audio Channels

7.1 channels
Component for

PC
Cooling type

Passive
Chipset

AMD B550
Motherboard chipset family

AMD
Motherboard form factor

ATX
PC health monitoring

Fan/Temperature/Voltage/Water cooling
Power source type

ATX
Colour

Dark brown
Windows operating systems supported

Windows 10 x64/Windows 11 x64
Compatible processor series

AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Platform

AMD
Socket

Socket AM4
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

128 GB
Maximum internal memory per slot

32 GB
Memory channels

Dual-channel
Memory slots type

DIMM
Memory Slots

4
Supported memory clock speed (max)

3200 MHz
Supported memory clock speeds

2133/2400/2667/2933/3200 MHz
Supported memory types

DDR4-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

6
RAID levels

0/1/10
RAID support

Yes
Supported storage drive interfaces

M.2,PCI Express 4.0,SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
Resolution

4096 x 2160 pixels
Parallel processing technology support

Not supported
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

3
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

1
Number of RGB LED pin headers

5
Number of SATA III connectors

4
Number of water pump connectors

1
RGB LED pin header

Yes
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI Version

2.1
Headphone outputs

1
Line-in

Yes
Microphone in

Yes
USB 2.0 ports quantity

4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1
Ethernet interface type

Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8111H
Wi-Fi

No
1st M.2 highest PCI Express generation

4.0
1st M.2 largest key size

22110
2nd M.2 highest PCI Express generation

3.0
2nd M.2 largest key size

22110
Number of M.2 (M) slots

2
PCI Express x1 (Gen 3.x) slots

4
PCI Express x16 (Gen 4.x) slots

1
ACPI version

5.0
BIOS memory size

128 Mbit
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Products per shipping (inner) case

1 pc(s)
Depth

244 mm
Height

35 mm
Width

305 mm
Batteries included

Yes
Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included

Yes
Weight

1250 g
Model

B550 EAGLE
Warranty 3 years
