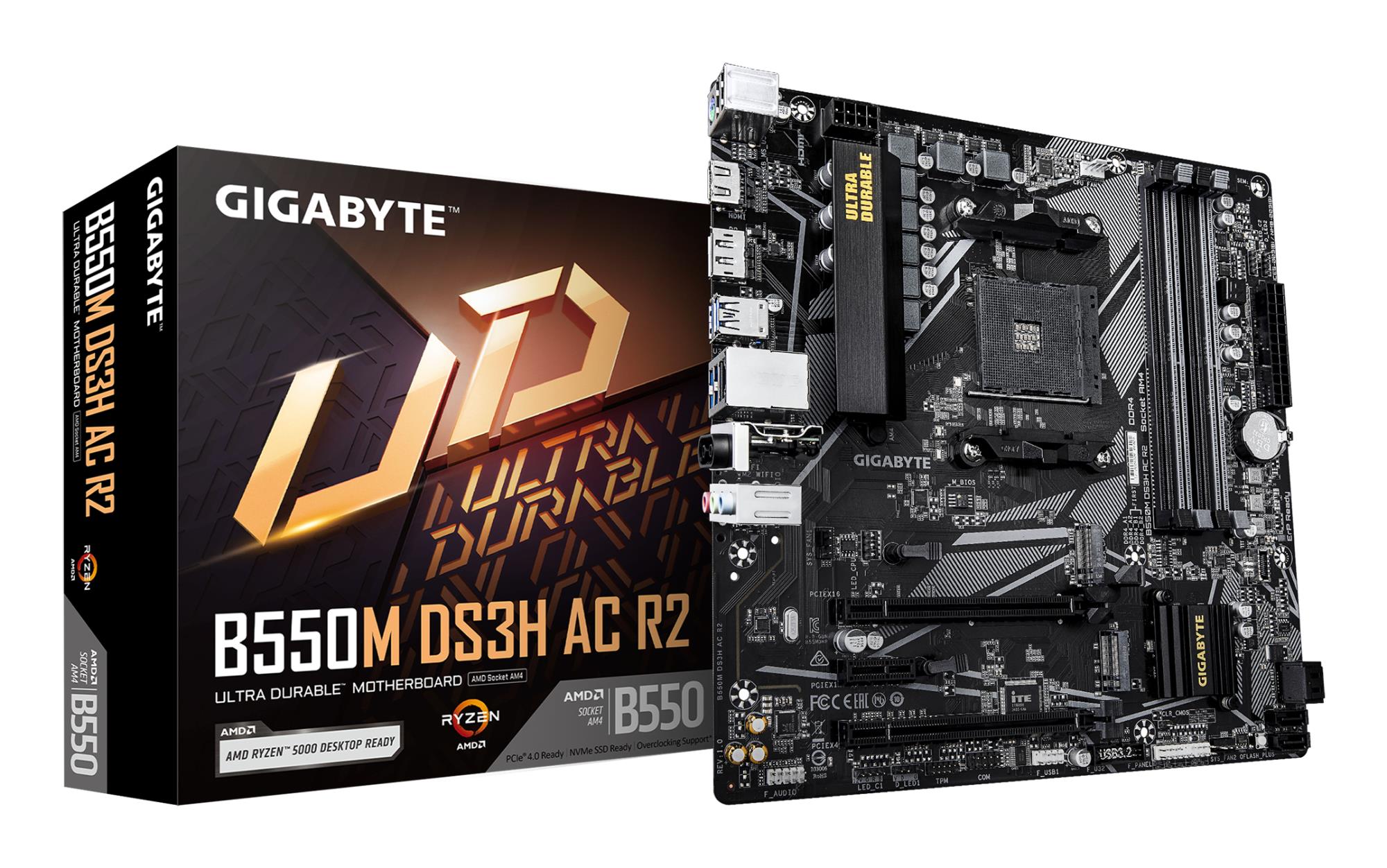

Mainboard|GIGABYTE|AMD B550|Socket AM4|micro ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|GIGABYTE B550M DS3H AC R2|B550MDS3HACR2

Mainboard GIGABYTE AMD B550 Socket AM4

Price 103,53 € VAT + 24,85 € Total 128,38 €

Specifications

  • micro ATX
  • RAM DDR4-SDRAM
  • 4xSlots
  • Wi-Fi Yes
  • Bluetooth Yes
  • 2xNumber of M.2 (M) slots
  • GIGABYTE B550M DS3H AC R2
  • B550MDS3HACR2

Warehouse availability

  • Stock 1 3 units
Category: Brand:

Description

Материнська плата GIGABYTE B550M DS3H AC R2

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
  • Digital 5+3 phases VRM solution
  • Dual Channel DDR4: 4*DIMMs
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch: PCIe slots with Quick Release Design
  • Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
  • Efficient Thermal: VRM Thermal Armor Advanced
  • Fast Networking: GbE LAN & Wi-Fi 5
  • Extended Connectivity: HDMI, Displayport
  • PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Additional information

Audio chip

Realtek ALC1220-VB
Audio Channels

7.1 channels
Component for

PC
Cooling type

Passive
Chipset

AMD B550
Motherboard chipset family

AMD
Motherboard form factor

micro ATX
PC health monitoring

Fan/Temperature/Voltage
Power source type

ATX
Colour

Dark brown
Windows operating systems supported

Windows 10 x64/Windows 11 x64
Compatible processor series

AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Processor manufacturer

AMD
Socket

Socket AM4
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

128 GB
Maximum internal memory per slot

32 GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

4733 MHz
Supported memory clock speeds

2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
Supported memory types

DDR4-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

6
RAID levels

0/1/10
RAID support

Yes
Supported storage drive interfaces

M.2,PCI Express 3.0,PCI Express 4.0,SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
Resolution

5120 x 2880 pixels
On-board graphics card

No
Parallel processing technology support

Not supported
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

2
Number of CPU fan connectors

1
Number of EPS power connectors (8-pin)

1
Number of RGB LED pin headers

5
Number of SATA III connectors

4
RGB LED pin header

Yes
Serial port headers

1
TPM connector

Yes
USB 2.0 connectors

1
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
DisplayPort version

1.4
DisplayPorts quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI Version

2.1
Headphone outputs

1
Line-in

Yes
Microphone in

Yes
PS/2 ports quantity

1
USB 2.0 ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
WiFi-AP antenna jack

2
Bluetooth

Yes
Bluetooth

5.0
Ethernet interface type

Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8111H
Top Wi-Fi standard

Wi-Fi 5 (802.11ac)
Wi-Fi

Yes
Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
WLAN controller model

Realtek RTL8821CE
1st M.2 highest PCI Express generation

4.0
1st M.2 largest key size

2280
2nd M.2 highest PCI Express generation

3.0
2nd M.2 largest key size

2280
Number of M.2 (M) slots

2
PCI Express x1 (Gen 3.x) slots

1
PCI Express x16 (Gen 3.x) slots

1
PCI Express x16 (Gen 4.x) slots

1
ACPI version

5.0
BIOS memory size

128 Mbit
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Products per shipping (inner) case

1 pc(s)
Depth

244 mm
Height

35 mm
Width

244 mm
Antenna included

Yes
Batteries included

Yes
Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included

Yes
Warranty period

3 year(s)
Weight

980 g
Model

GIGABYTE B550M DS3H AC R2
