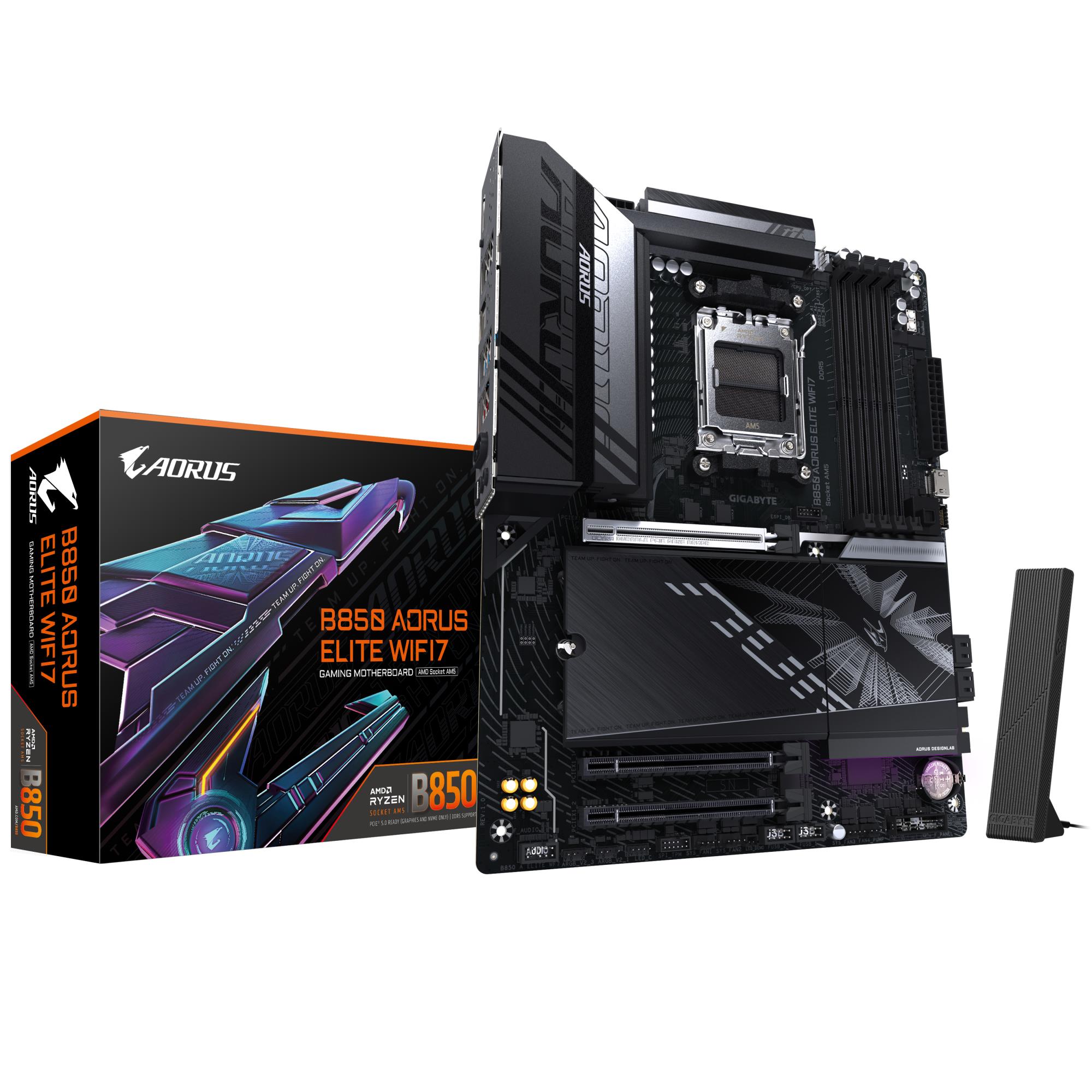

Mainboard|GIGABYTE|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|B850AELITEWF71.1

Mainboard GIGABYTE AMD B850 SAM5

Price 225,89 € VAT + 54,21 € Total 280,10 €

Specifications

  • ATX
  • Memory DDR5
  • Memory slots 4
  • B850AELITEWF71.1

Warehouse availability

  • Stock 1 1 unit
Category: Brand:

Description

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • Twin 14+2+2 Phases Digital VRM with DrMOS
  • Dual Channel DDR5：4*DIMMs
  • PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch Plus
  • M.2 Gen5 with EZ-Latch Plus, Fully Covered MOSFET Heatsinks
  • Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna
  • 2.5GbE LAN, Q-Flash Plus

Additional information

Audio chip

Realtek ALC897
Audio Channels

7.1 channels
Component for

PC
Chipset

AMD B850
Motherboard chipset family

AMD
Motherboard form factor

ATX
PC health monitoring

Fan/Temperature/Voltage/Water cooling
Power source type

ATX
Colour

Black/Brown
Windows operating systems supported

Windows 10 x64/Windows 11 x64
Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer

AMD
Socket

Socket AM5
ECC сompatibility

Non-ECC
Maximum internal memory

256 GB
Maximum internal memory per slot

64 GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

8200 MHz
Supported memory clock speeds

4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

7
RAID levels

0/1/10
RAID support

Yes
Supported storage drive interfaces

M.2,SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
Resolution

4096 x 2160 pixels
On-board graphics card

No
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

3
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

1
Number of RGB LED pin headers

4
Number of SATA III connectors

4
Number of water pump connectors

2
Peripheral (Molex) power connectors (4-pin)

1
RGB LED pin header

Yes
Serial port headers

1
Total number of SATA connectors

4
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
USB 3.2 Gen 2x2 connectors

1
DisplayPort version

1.4
DisplayPorts quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI Version

1.4
Headphone outputs

1
Microphone in

Yes
USB 2.0 ports quantity

4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1
WiFi-AP antenna jack

2
Bluetooth

Yes
Bluetooth

5.4
Ethernet interface type

2.5 Gigabit Ethernet
Ethernet LAN

Yes
Top Wi-Fi standard

Wi-Fi 7 (802.11be)
Wi-Fi

Yes
Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
WLAN controller model

Realtek RTL8922AE
1st M.2 highest PCI Express generation

5.0
1st M.2 largest key size

25110
2nd M.2 highest PCI Express generation

4.0
2nd M.2 largest key size

22110
3rd M.2 highest PCI Express generation

4.0
3rd M.2 largest key size

22110
Number of M.2 (M) slots

3
PCI Express x16 (Gen 4.x) slots

2
ACPI version

5.0
BIOS memory size

256 Mbit
BIOS type

UEFI AMI
Clear CMOS button

Yes
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g
Country of origin

China
Lithium weight per battery

0.07 g
Number of battery cells

1
Products per shipping (inner) case

1 pc(s)
Depth

244 mm
Height

35 mm
Width

305 mm
Antenna included

Yes
Batteries included

Yes
Bundled software

Norton Internet Security (OEM version)
LAN bandwidth management software
Screws included

Yes
Warranty period

3 year(s)
Weight

2130 g
Model

B850 A ELITE WF7
