Mainboard|GIGABYTE|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|2xUSB 2.0|8xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|X870EAORUSMASTER

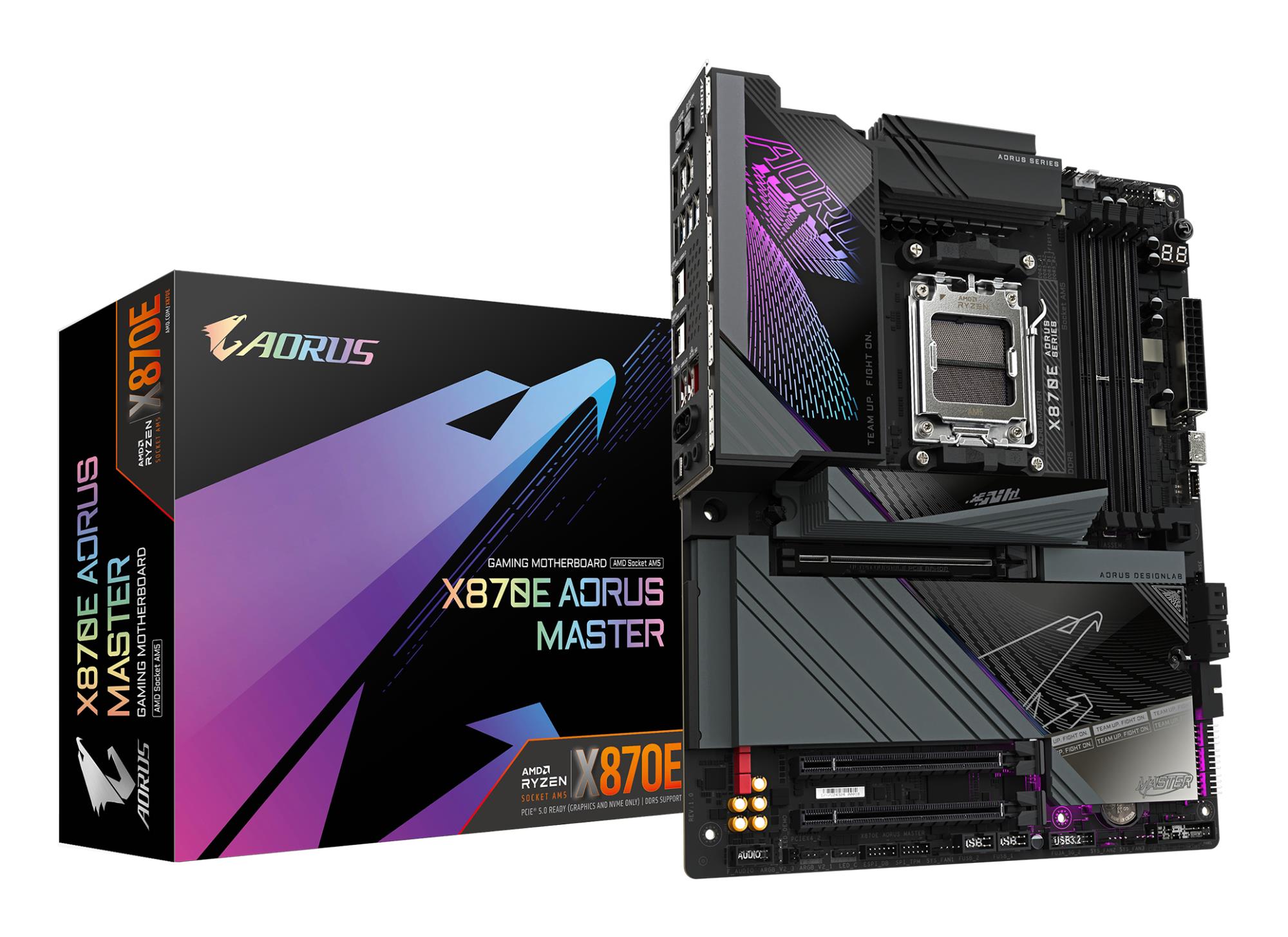

Mainboard GIGABYTE AMD X870E SAM5

Price 488,49 € VAT + 117,24 € Total 605,73 €

Specifications

  • ATX
  • Memory DDR5
  • Memory slots 4
  • 1xPCI-Express 3.0 4x
  • 1xPCI-Express 4.0 4x
  • 1xPCI-Express 5.0 16x
  • 4xM.2
  • 1xHDMI
  • 2xUSB 2.0
  • 8xUSB 3.2
  • 2xUSB-C
  • 1xOptical S/PDIF
  • 1xRJ45
  • 2xAudio port
  • X870EAORUSMASTER

Warehouse availability

  • Stock 1 1 unit
Category: Brand:

Description

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
  • Twin 16+2+2 Phases Digital VRM with 110A Smart Power Stage
  • Dual Channel DDR5：4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
  • M.2 Gen5 with EZ-Latch Plus
  • Efficient Overall Thermal: Fully Covered MOSFET Heatsinks
  • Extended Connectivity: HDMI, Sensor Panel Link ( Front HDMI), 2*USB-C DP
  • Fast Networking: 5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna

Additional information

Audio chip

Realtek ALC1220
Audio Channels

7.1 channels
Component for

PC
Chipset

AMD X870
Motherboard chipset family

AMD
Motherboard form factor

ATX
PC health monitoring

Fan/Temperature/Voltage
Colour

Black
Windows operating systems supported

Windows 11 x64
Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Maximum internal memory supported by processor

256 GB
Processor manufacturer

AMD
Socket

Socket AM5
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

256 GB
Maximum internal memory per slot

64 GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

8600 MHz
Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8200/8400/8600 MHz
Supported memory module capacities

12GB/1GB/24GB/2GB/32GB/4GB/8GB
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

8
RAID levels

0/1/10
RAID support

Yes
Supported storage drive interfaces

M.2,SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
On-board graphics card

No
Parallel processing technology support

Not supported
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

6
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

2
Number of RGB LED pin headers

5
Number of SATA III connectors

4
Number of water pump connectors

2
RGB LED pin header

Yes
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
USB 3.2 Gen 2x2 connectors

1
DisplayPort version

1.4
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI Version

2.1
Headphone outputs

1
Line-in

Yes
S/PDIF out port

Yes
USB 2.0 ports quantity

2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4
USB4 Gen 2x2 ports quantity

2
WiFi-AP antenna jack

2
Bluetooth

Yes
Bluetooth

5.3
Ethernet interface type

5 Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8126
Top Wi-Fi standard

Wi-Fi 7 (802.11be)
Wi-Fi

Yes
Wi-Fi standards

Wi-Fi 7 (802.11be)
WLAN controller model

Qualcomm QCNCM865
1st M.2 highest PCI Express generation

5.0
1st M.2 largest key size

25110
2nd M.2 highest PCI Express generation

5.0
2nd M.2 largest key size

22110
3rd M.2 highest PCI Express generation

5.0
3rd M.2 largest key size

22110
4th M.2 highest PCI Express generation

4.0
4th M.2 largest key size

22110
Number of M.2 (M) slots

4
PCI Express x16 (Gen 3.x) slots

1
PCI Express x16 (Gen 4.x) slots

1
PCI Express x16 (Gen 5.x) slots

1
PCI Express x4 slots

2
ACPI version

5.0
BIOS memory size

256 Mbit
BIOS type

UEFI AMI
Clear CMOS button

Yes
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g
Country of origin

China
Lithium weight per battery

0.07 g
Number of battery cells

1
Products per shipping (inner) case

1 pc(s)
Depth

244 mm
Height

35 mm
Width

305 mm
Antenna included

Yes
Batteries included

Yes
Screws included

Yes
Warranty period

3 year(s)
Weight

2540 g
Model

X870E AORUS MASTER
