Mainboard|GIGABYTE|Intel B760 Express|LGA1700|ATX|Memory DDR4|Memory slots 4|4xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B760DS3HDDR4

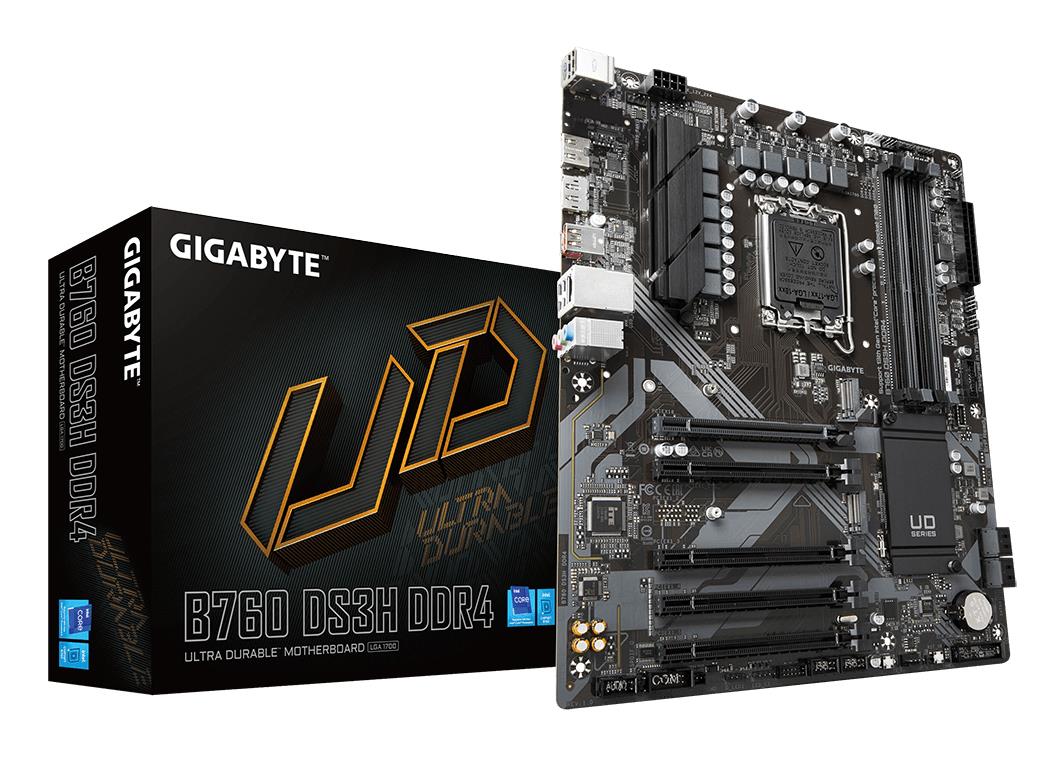

Mainboard GIGABYTE Intel B760 Express LGA1700

Price 97,74 € VAT + 23,46 € Total 121,20 €

Specifications

  • ATX
  • Memory DDR4
  • Memory slots 4
  • 4xPCI-Express 3.0 1x
  • 1xPCI-Express 4.0 16x
  • 2xM.2
  • 1xHDMI
  • 1xDisplayPort
  • 4xUSB 2.0
  • 1xUSB 3.2
  • 1xUSB-C
  • 1xPS/2
  • 1xRJ45
  • 3xAudio port
  • B760DS3HDDR4

Warehouse availability

  • Stock 1 2 units
Category: Brand:

Description

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • Supports Intel Core 14th/ 13th /12th processors
  • Unparalleled Performance：Hybrid 8+2+1 Phases Digital VRM Solution
  • Dual Channel DDR4：4*DIMMs XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks：GbE LAN
  • Extended Connectivity：Rear USB-C 20Gb/s, DP, HDMI
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Additional information

Audio Channels

7.1 channels
Component for

PC
Chipset

Intel B760 Express
Motherboard chipset family

Intel
Motherboard form factor

ATX
PC health monitoring

Fan/Temperature/Voltage/Water cooling
Windows operating systems supported

Windows 10 x64/Windows 11 x64
Compatible processor series

Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Maximum internal memory supported by processor

128 GB
Processor manufacturer

Intel
Socket

LGA 1700
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

128 GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

5333 MHz
Supported memory clock speeds

2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz
Supported memory module capacities

12GB/16GB/1GB/2GB/32GB/4GB/8GB
Supported memory types

DDR4-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

6
RAID levels

0/1/10/5
RAID support

Yes
Supported storage drive interfaces

M.2,PCI Express 4.0,SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
Resolution

4096 x 2304 pixels
Parallel processing technology support

Not supported
12V power connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of SATA III connectors

4
RGB LED pin header

Yes
S/PDIF out connector

Yes
Serial port headers

1
Total number of SATA connectors

4
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
DisplayPort version

1.2
DisplayPorts quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI Version

2.0
Headphone outputs

3
Microphone in

Yes
PS/2 ports quantity

1
USB 2.0 ports quantity

4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1
USB 3.2 Gen 2x2 Type-C ports quantity

1
USB connector type

USB Type-A/USB Type-C
Ethernet interface type

Gigabit Ethernet
Ethernet LAN

Yes
Wi-Fi

No
Number of M.2 (M) slots

2
PCI Express x16 slots

5
ACPI version

5.0
BIOS memory size

128 Mbit
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g
Country of origin

China
Lithium weight per battery

0.07 g
Number of battery cells

1
Products per shipping (inner) case

1 pc(s)
Depth

244 mm
Height

35 mm
Width

305 mm
Batteries included

Yes
Bundled software

Norton Internet Security
Cables included

SATA
Warranty period

3 year(s)
Model

B760 DS3H DDR4
