Mainboard|GIGABYTE|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 1x|1xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|3xUSB 2.0|3xUSB 3.2|1xPS/2|1xRJ45|B860MD3HP1.0

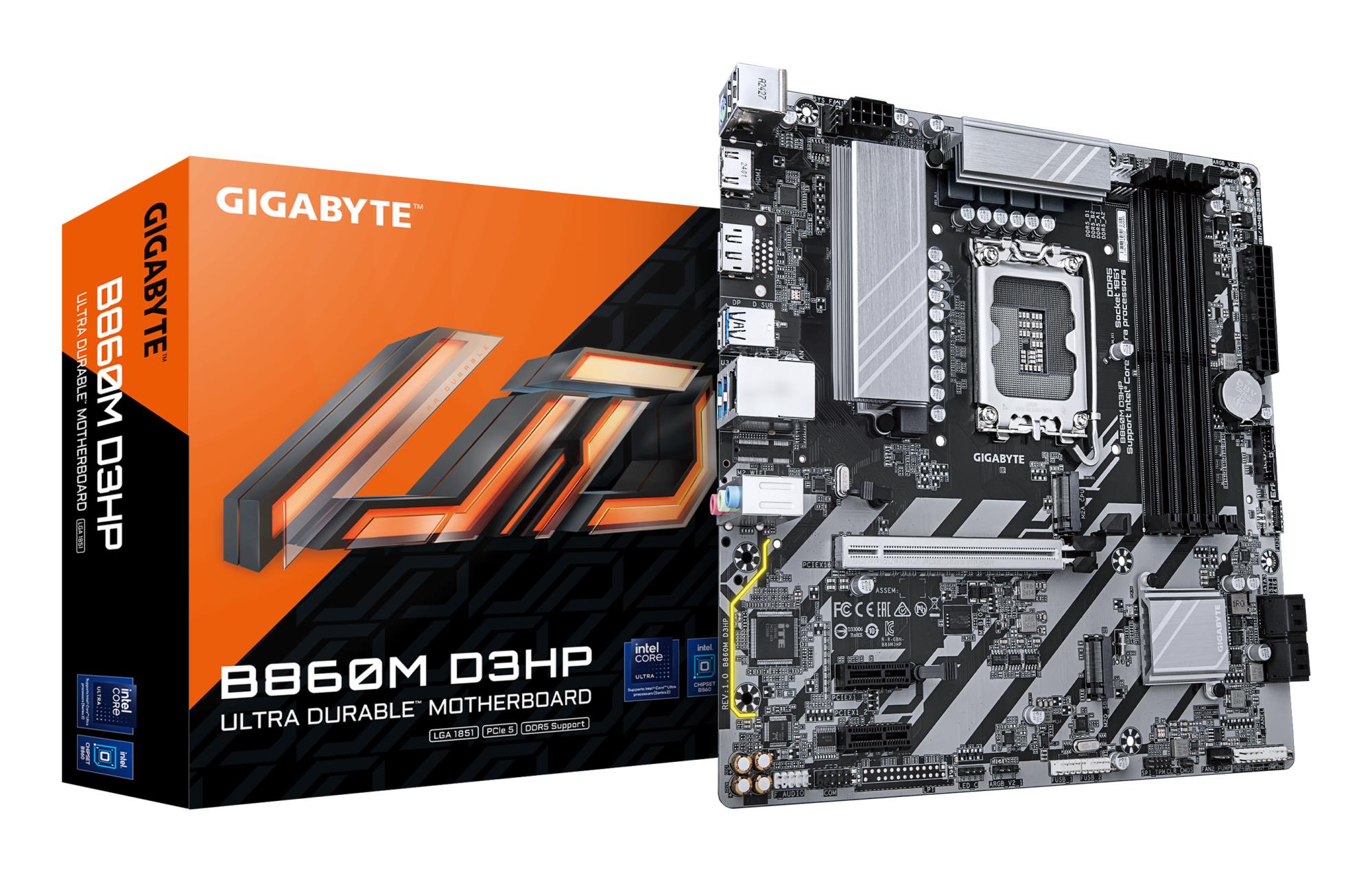

Mainboard GIGABYTE Intel B860 Express LGA1851

Price 116,41 € VAT + 27,94 € Total 144,35 €

Specifications

  • Micro-ATX
  • Memory DDR5
  • Memory slots 4
  • 2xPCI-Express 1x
  • 1xPCI-Express 16x
  • 2xM.2
  • 1xHDMI
  • 1xDisplayPort
  • 1xAudio-In
  • 1xAudio-Out
  • 1xMicrophone
  • 3xUSB 2.0
  • 3xUSB 3.2
  • 1xPS/2
  • 1xRJ45
  • B860MD3HP1.0

Warehouse availability

  • Stock 1 6 units
Category: Brand:

Description

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

  • Hybrid 4+1+2+1 Phases 50A PPAK VRM
  • Dual Channel DDR5：4*DIMMs
  • PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch
  • MOSFET Heatsinks & PCH Heatsink
  • 1GbE LAN, USB 3.2 Gen1 Type-C

Additional information

Audio chip

Realtek ALC897
Audio Channels

7.1 channels
Component for

PC
Cooling type

Passive
Chipset

Intel B860
Motherboard chipset family

Intel
Motherboard form factor

micro ATX
PC health monitoring

Fan/Temperature/Voltage/Water cooling
Power source type

ATX
Colour

Dark brown
Windows operating systems supported

Windows 10 x64/Windows 11 x64
Compatible processor series

Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)
Processor manufacturer

Intel
Socket

LGA 1851
ECC сompatibility

ECC & Non-ECC
Maximum internal memory

256 GB
Maximum internal memory per slot

64 GB
Memory channels

Dual-channel
Memory slots type

DIMM
Number of memory slots

4
Supported memory clock speed (max)

9066 MHz
Supported memory clock speeds

5600/6400/9066 MHz
Supported memory types

DDR5-SDRAM
Unbuffered memory

Yes
Number of HDDs supported

4
Number of storage drives supported

6
RAID levels

0/1/10/5
RAID support

Yes
Supported storage drive interfaces

M.2,SATA III
Supported storage drive types

HDD & SSD
DirectX version

12.0
HDCP

Yes
Resolution

4096 x 2160 pixels
Parallel processing technology support

Not supported
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
Front panel audio connector

Yes
Front panel connector

Yes
Number of chassis fan connectors

2
Number of CPU fan connectors

2
Number of EPS power connectors (8-pin)

1
Number of RGB LED pin headers

3
Number of SATA III connectors

4
Number of water pump connectors

2
RGB LED pin header

Yes
Serial port headers

1
TPM connector

Yes
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
DisplayPort version

2.1
DisplayPorts quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI ports quantity

1
HDMI Version

2.1
Headphone outputs

1
Line-in

Yes
PS/2 ports quantity

1
USB 2.0 ports quantity

3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3
Ethernet interface type

Gigabit Ethernet
Ethernet LAN

Yes
LAN controller

Realtek RTL8111H
Wi-Fi

No
1st M.2 highest PCI Express generation

4.0
1st M.2 largest key size

2280
2nd M.2 highest PCI Express generation

4.0
2nd M.2 largest key size

2280
Number of M.2 (M) slots

2
PCI Express x1 (Gen 3.x) slots

2
PCI Express x16 (Gen 5.x) slots

1
ACPI version

5.0
BIOS memory size

256 Mbit
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Battery weight

3 g
Country of origin

China
Lithium weight per battery

0.07 g
Number of battery cells

1
Products per shipping (inner) case

1 pc(s)
Depth

244 mm
Height

35 mm
Width

244 mm
Batteries included

Yes
Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included

Yes
Warranty period

3 year(s)
Weight

1100 g
Model

B860M D3HP
