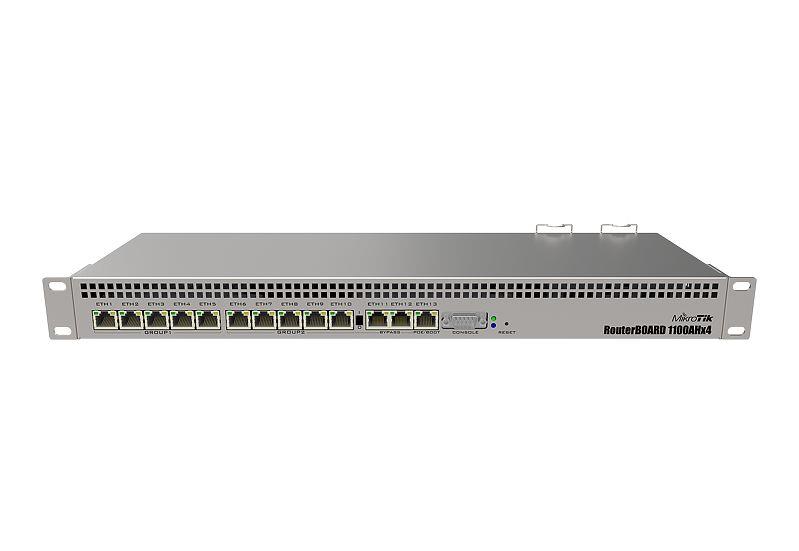

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).
Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
| 3G/4G USB modem compatibility | No |
|---|---|
| DSL WAN | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Throughput | 7.5 Gbit/s |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 13 |
| RS-232 ports | 1 |
| IP address filtering | Yes |
| Cables included | AC |
| Built-in processor | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Flash memory | 128 MB |
| Memory | 1000 MB |
| Operating system installed | RouterOS |
| Processor cores | 4 |
| Processor frequency | 1400 MHz |
| Processor | Annapurna Labs Alpine AL21400 |
| Storage media | Flash |
| Temperature monitoring | Yes |
| Voltage monitoring | Yes |
| LED indicators | Activity/Fault |
| Colour | Stainless steel |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Antenna type | Not supported |
| AC input voltage | 100 – 240 V |
| Power consumption (typical) | 20 W |
| Power over Ethernet (PoE) | Yes |
| Power source type | AC,DC,PoE |
| Operating temperature (T-T) | -40 – 70 °C |
| Depth | 148 mm |
| Height | 47 mm |
| Width | 444 mm |
| Product model code | RB1100AHx4 |
