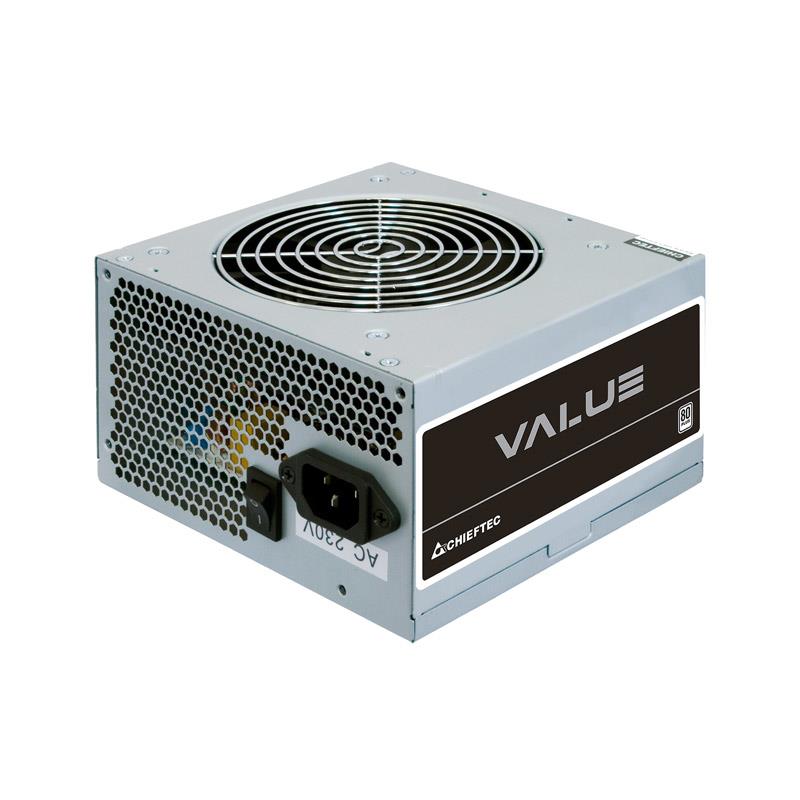

The APB-400B8 of the VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
| Total power | 400 W |
|---|---|
| AC input voltage | 200 – 240 V |
| AC input frequency | 47 – 63 Hz |
| Input current | 3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 17 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 350 mm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 150/350 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150/350 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 350 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 350 mm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | PS/2 |
| ATX version | 2.3 |
| Colour | Silver |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Certification | 80PLUS 230V EU |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 87 mm |
| Shipping Box Weight | 12.8000001907349 kg |
| Unit Width | 9 cm |
| Shipping Box Height | 21 cm |
| Unit Depth | 18 cm |
| Shipping Box Depth | 50.5 cm |
| Unit Height | 16 cm |
| Shipping Box Width | 45.5 cm |
| Name | CASE PSU ATX 400W/APB-400B8 CHIEFTEC |
| Warranty | 2 years |
