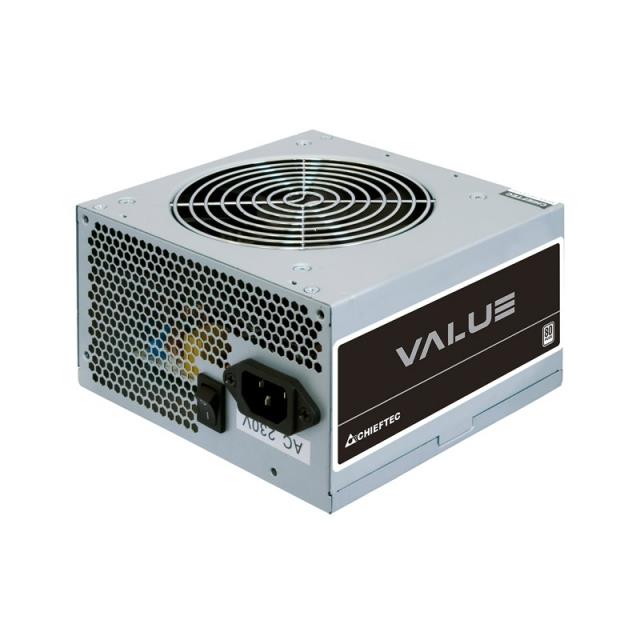

Chieftec Value APB-600B8
The new VALUE SERIES offers both quality and 80 PLUS 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
| AC input frequency | 47 – 63 Hz |
|---|---|
| AC input voltage | 200 – 240 V |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+12V1) | 46 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Maximum input current (@220V) | 4.5 A |
| Peak power | 600 W |
| Total power | 600 W |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | No |
| Floppy disk drive cable length | 150 mm |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 550 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 150/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 150/500 mm |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Colour | Steel |
| Compliance certificates | CE/RoHS |
| Depth | 140 mm |
| Height | 87 mm |
| Weight | 1420 g |
| Width | 150 mm |
| Shipping Box Depth | 49.5 cm |
| Shipping Box Height | 20 cm |
| Shipping Box Weight | 15.8000001907 kg |
| Shipping Box Width | 45 cm |
| Warranty | 2 years |
