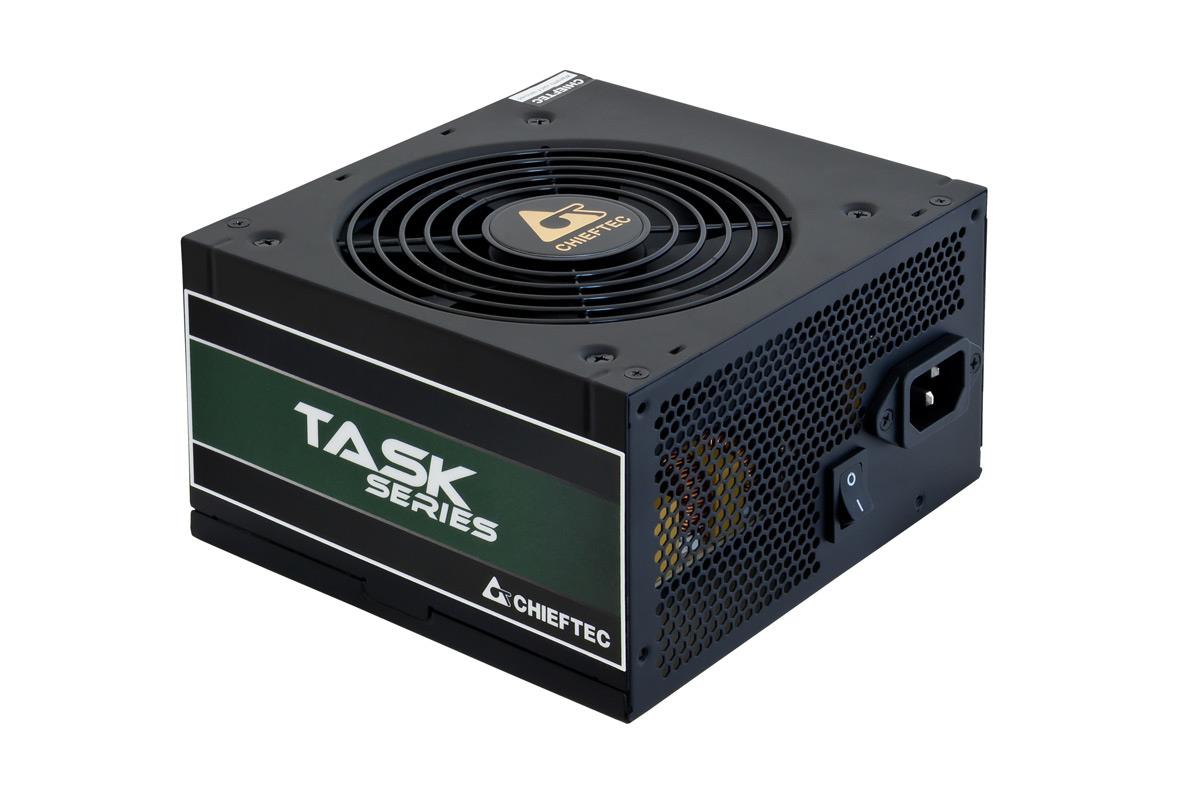

Power Supply CHIEFTEC 700 Watts Efficiency 80 PLUS BRONZE PFC Active TPS-700S

Power Supply CHIEFTEC 700 Watts Efficiency 80 PLUS BRONZE PFC Active TPS-700S

Price 45,38 € VAT + 10,89 € Total 56,27 €

Out of stock

Warehouse availability

  • Stock 1 Out of stock
Category: Brand:

Description

TPS-700S

The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.

  • 80PLUS Bronze certified efficiency
  • 650mm long cables for maximum case compatibility
  • All modern protection and safety features included

Additional information

AC input frequency

47 – 63 Hz
AC input voltage

100 – 240 V
Combined power (+5Vsb)

12.5 W
Combined power (-12V)

3.6 W
Input current

10 A
Max output current (+3.3V)

19 A
Max output current (+5V)

17 A
Max output current (+5Vsb)

2.5 A
Max output current (-12V)

0.3 A
Power factor

0.9
Power Factor Correction (PFC) type

Active
Power protection features

Over voltage/Overheating/Overload/Short circuit/Under voltage
Total power

700 W
ATX power connector (20+4 pin)

Yes
Cabling type

Non-Modular
EPS power connector (4+4 pin)

Yes
Motherboard power cable length

650 mm
Motherboard power connector

20+4 pin ATX
Number of SATA power connectors

6
PCI Express power cable length

500 mm
PCI Express power connectors (6+2 pin)

2
Peripheral (Molex) power cable length

150/500 mm
Peripheral (Molex) power connectors (4-pin)

3
SATA power cable length

150/500 mm
80 PLUS certification

80 PLUS Bronze
Power supply unit (PSU) form factor

ATX
Purpose

PC
Supported motherboard form factors

ATX
Fan diameter

120 mm
Number of fans

1 fan(s)
Colour

Black
Certification

ErP, CE, CB, EAC, TUV
Compliance certificates

RoHS
Depth

140 mm
Height

87 mm
Weight

1740 g
Width

150 mm
EPS cable length

650 mm
Warranty 2 years
