Additional information
| AC input frequency | 50/60 Hz |
|---|---|
| AC input voltage | 100 – 240 V |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Input current | 10 – 5 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 750 W |
| Cabling type | Fully-Modular |
| CPU power cable length | 700 mm |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power cable length | 610 mm |
| Motherboard power connector | 24-pin ATX |
| PCI Express connector | Yes |
| PCI Express power cable length | 750 mm |
| PCI Express power connectors (12+4 pin) cable length | 700 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 690 mm |
| SATA power cable length | 950 mm |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Silent mode | Yes |
| Cooling type | Active |
| Fan diameter | 135 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Colour | White |
| Operating temperature (T-T) | 0 – 50 °C |
| Cable tie(s) included | Yes |
| Certification | BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV, Energy Star, ErP Lot 6, REACH, RoHS, WEEE |
| Compliance certificates | BSMI/CB/CCC/CE/cTUVus/EAC/Federal Communications Commission (FCC)/REACH/RoHS/TÜV mark |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Sustainability certificates | ENERGY STAR/ErP |
| Sustainability compliance | Yes |

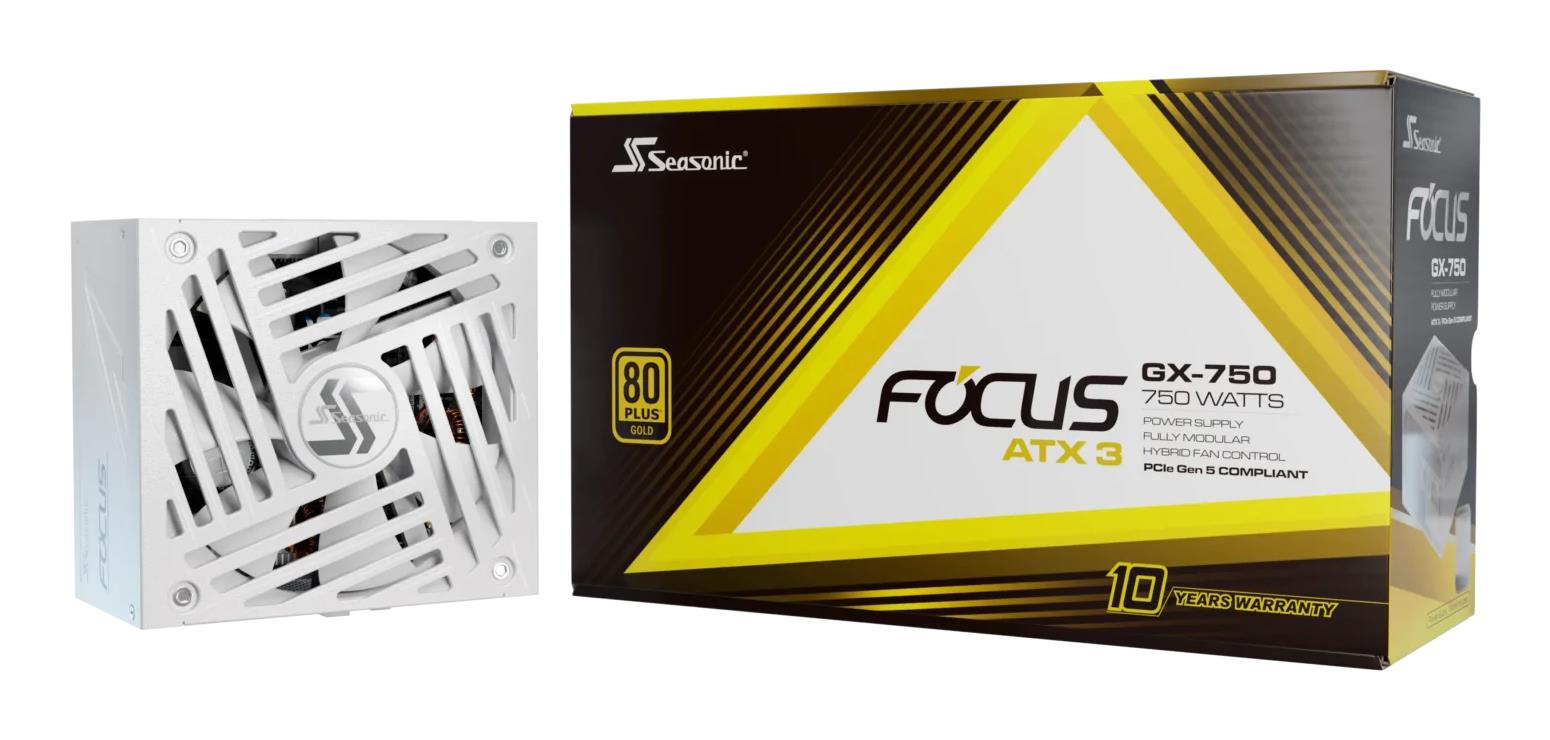

| Model name | FOCUS GX White ATX 3 (2024) |
| Warranty | 10 years |
