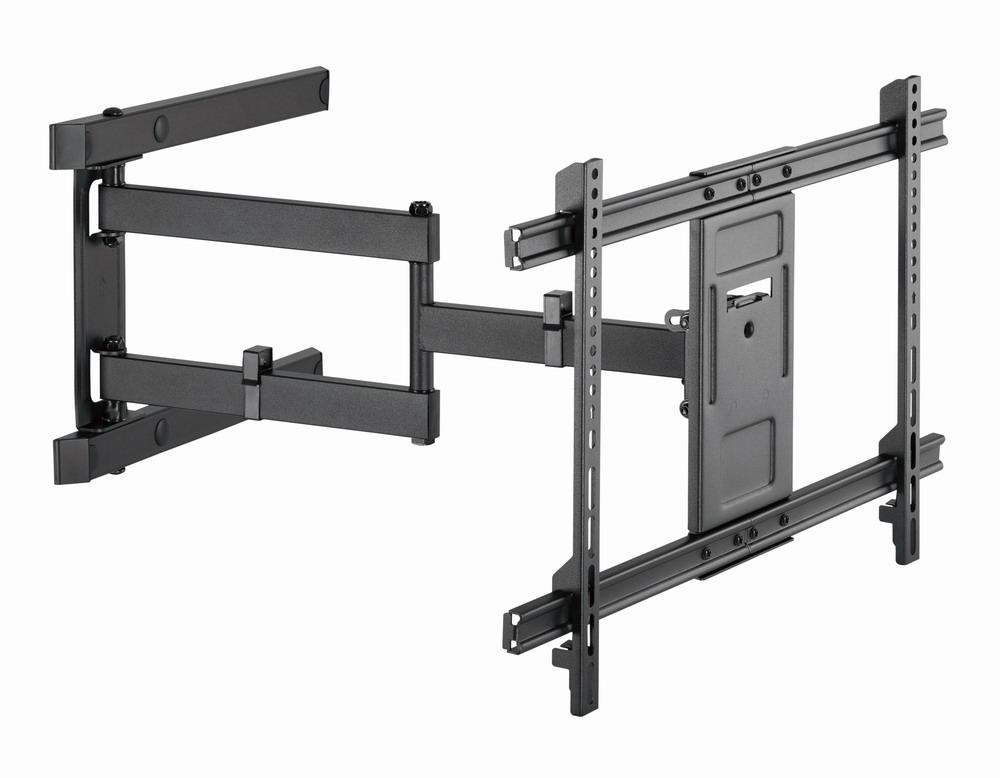

Single-arm full-motion TV wall mount
Supports most 37” – 80” LCD TV’s
VESA compatible, max. 600 mm x 400 mm
Allows up to 180 degrees swivel and 18 degrees tilting
Distance to wall: 76 – 620 mm
Practical integrated bubble level for perfect alignment
Includes all necessary installation materials
| Maximum screen size | 80 " |
|---|---|
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 37 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200/300 x 200/300 x 300/400 x 200/400 x 300/400 x 400/600 x 400 mm |
| Cable management | Yes |
| Distance to the wall (max) | 620 mm |
| Distance to the wall (min) | 76 mm |
| Pivot angle | 3 – -3 ° |
| Swivel angle range | 90 – -90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 3 – -15 ° |
| Turn angle | 180 ° |
| Housing material | Plastic/Steel |
| Colour | Black |
| Compliance certificates | RoHS |
| Manual | Yes |
| Mounting kit | Yes |
| Sustainability compliance | Yes |
| Depth (max) | 425 mm |
| Height | 425 mm |
| Weight | 7300 g |
| Width | 620 mm |
| Model | WM-80ST-05 |
| Warranty | 2 years |
