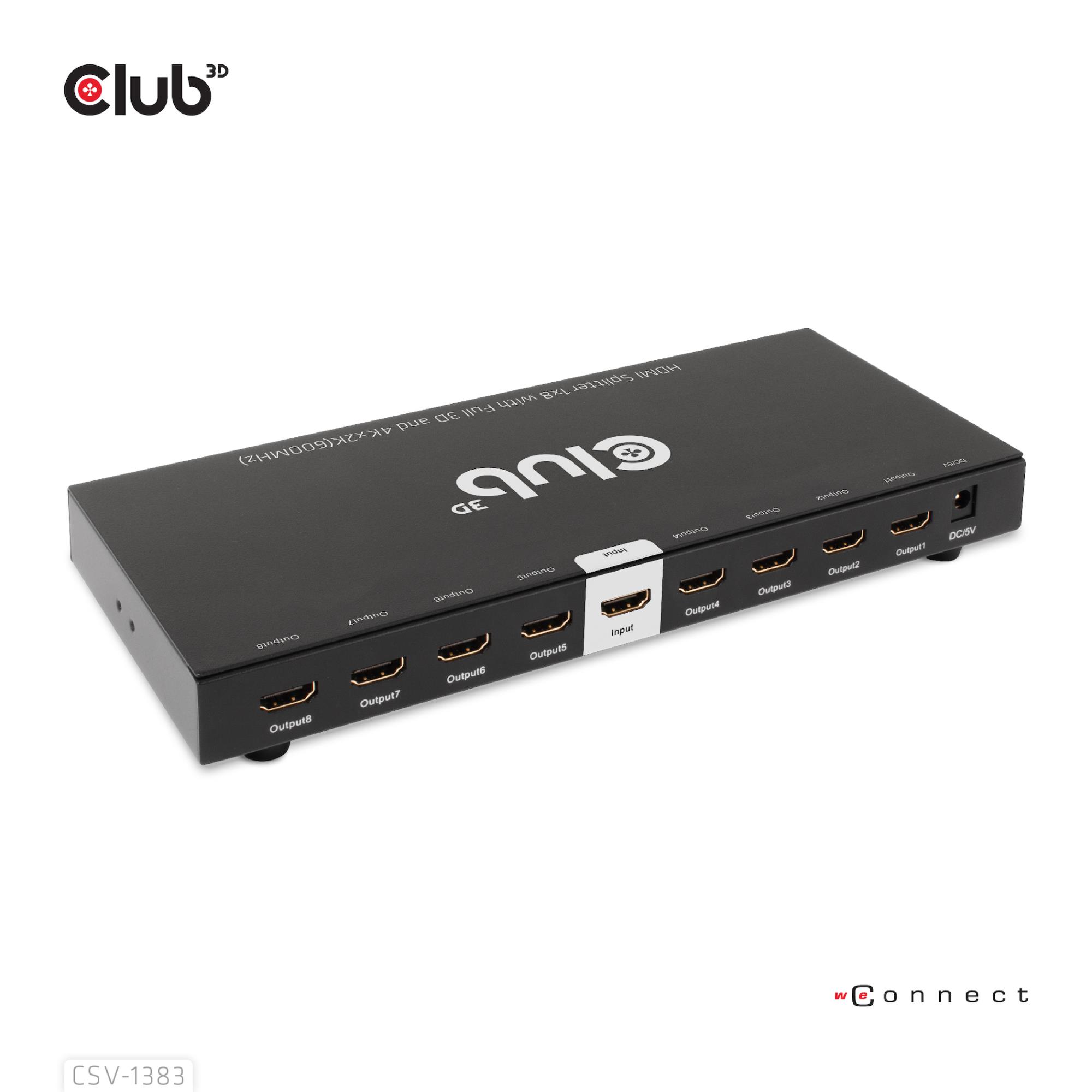

VIDEO SPLITTER HDMI 8PORT/3D 4K 60HZ CSV-1383 CLUB3D

Description

The Club 3D CSV-1383 is a high-performance and small-sized 1 to 8 HDMI™ Ultra
High Definition Splitter with hot plug and iron casing. It distributes the input of
the HDMI™ signal into eight identical outputs at the same time. It provides high
performance audio and video output through HDMI™ cables up to 4K@60Hz
resolution and is capable of receiving and transmitting up to 6Gbps/600MHz
bandwidth.
This is a high-performance and small-sized HDMI™ splitter in a metal housing with
an external Power Supply of 100-240VAC / 5V-3A DC, Power consumption(Max.)
11.3 Watt. It’s an ideal assistant both at home and at work.
Features:
• Easy to Use: Install in seconds, no need for settings
• One HDMI™ Input, eight HDMI™ outputs
• Support 12-bit Deep Full HD, Full 3D, HDR and 4K60Hz video
• Vertical Frequency Range 24-30-50-60Hz
• Resolution HDTV
Interlaced (50&60Hz) 480i,576i,1080i
Progressive (50&60Hz) Max. up to 4K@60Hz
• Support compressed audio
• Support HDCP 2.2
• Power Protection: the power will get disconnected automatically once the
voltage of the connected power adapter is above 5.5V (Note: the power
protection circuit will be damaged if the voltage if above 30V, so avoid
connecting power adapter with voltage above 30V)
• OS Support: Windows10/11

• OS Support:
• Windows10/11
• In the box:
• Club 3D CSV-1383 1 to 8 HDMI™ Splitter
• Power Supply 100-240VAC/ 5V3A DC(Please Specify Plug type when ordering)
• QR Code for downloading the Quick Install Guide (QIG)
• Available Interfaces
• Input:
• 1x HDMI™ Female
• Output:
• 8x HDMI™ Female
• Other info:
• Box size: 35 x 13 x 5.5 cm / 13.78 x 5.12 x 2.17″
• Switch size: 25.8 x 11.35 x 3.5 cm / 10.16 x 4.47 x 1.38″
• Box Weight:
• ProductWeight: 770 gr / 27.16 oz
• Power Supply Weight: 127 gr / 4.48 oz (Depending on PowerPlug)
• Total Weight: (Depending on PowerPlug)
• Meets ROHS, FCC, and CE EMI requirements
