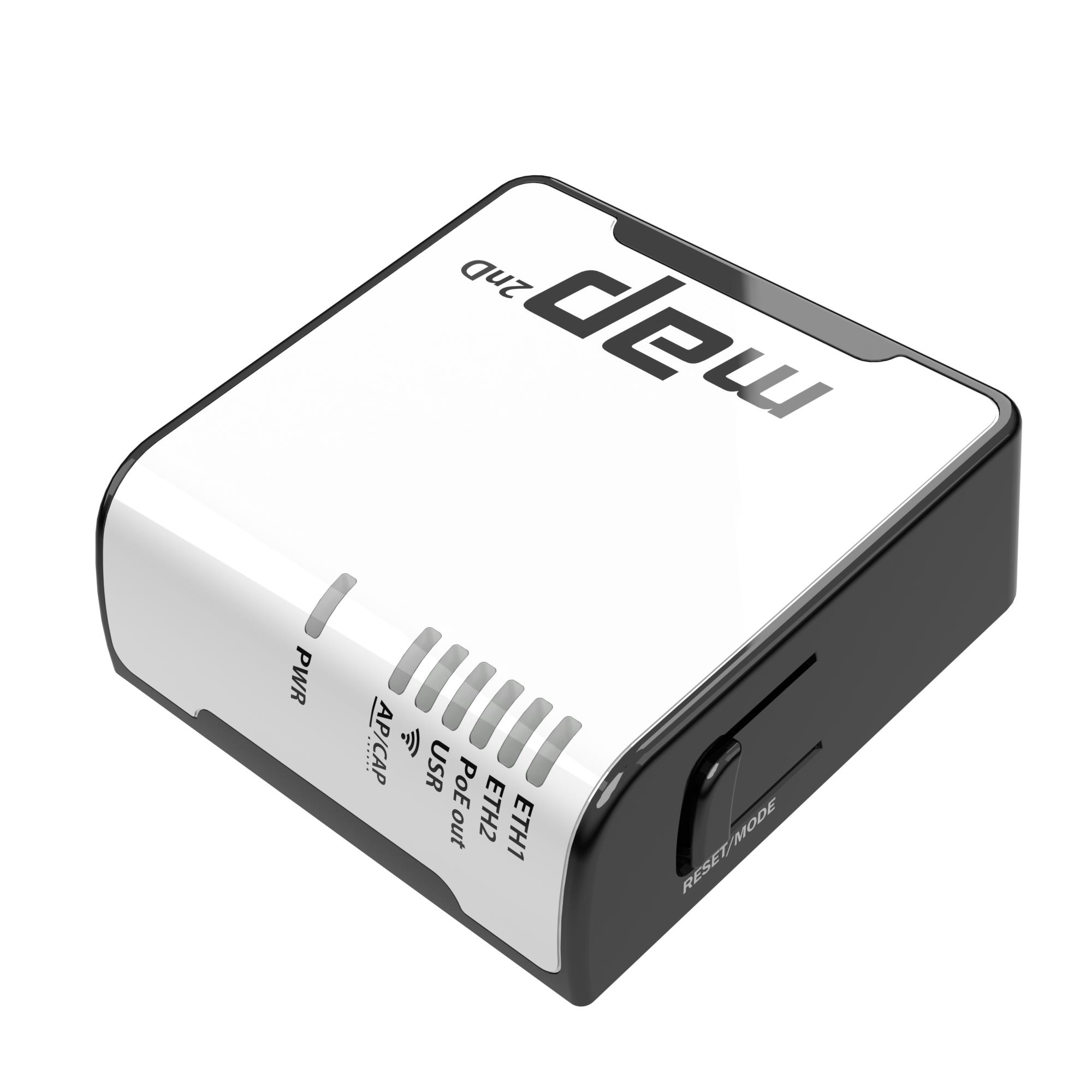

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources – USB, Passive PoE and power jack. It also works as a PoE injector – the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Networking standards | IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-B |
| Output current | 0.8 A |
| Output voltage | 24 V |
| Power over Ethernet (PoE) | Yes |
| Internal | No |
| LED indicators | Yes |
| Placement | Table |
| Colour | Black/White |
| Antenna gain level (max) | 1.2 dBi |
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Memory | 64 MB |
| Operating System | Linux |
| Depth | 68 mm |
| Height | 19 mm |
| Width | 68 mm |
| AC adapter included | Yes |
| Cables included | USB |
| Operating relative humidity (H-H) | -10 – 70 % |
| Model name | mAP // RBmAP2nD |
| Warranty | 1 year |
